Fan Shaft

Ariel can provide a fan drive shaft on the auxiliary end of the smaller compressor frames.  The fan drive shaft is to be used without a side load.  The shaft should be supported with an outboard bearing pillow block pair if used with a side loading similar to a belt drive load.  The fan drive shaft can be used up to the power limitations listed below.
The JGJ/2 shaft will require a pillow block arrangement for all applications to limit the axial thrust on the frame bearings.
The JG:A/2 and JGM:P:N:Q fan shafts connect to the crankshaft with a threaded connection.  To avoid the threaded fan shaft from backing out due to shutdown deceleration, the fan inertia must be limited.
Frame
Fan Drive Horsepower (Max)
Fan Inertia (Max)
JGM:P:N:Q
15 hp
28 lb-ft2 (4000 lb-in2) (1.18 kg-m2)
JG:A/2
15 hp
28 lb-ft2 (4000 lb-in2) (1.18 kg-m2)
JG:A/4
15 hp
JGJ/2
30 hp
JGJ/4
50 hp

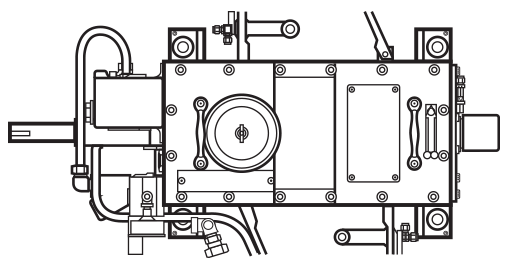

Fan Drive Shaft Drive End
Fan Shaft
