DOWNSTREAM & REFINERY

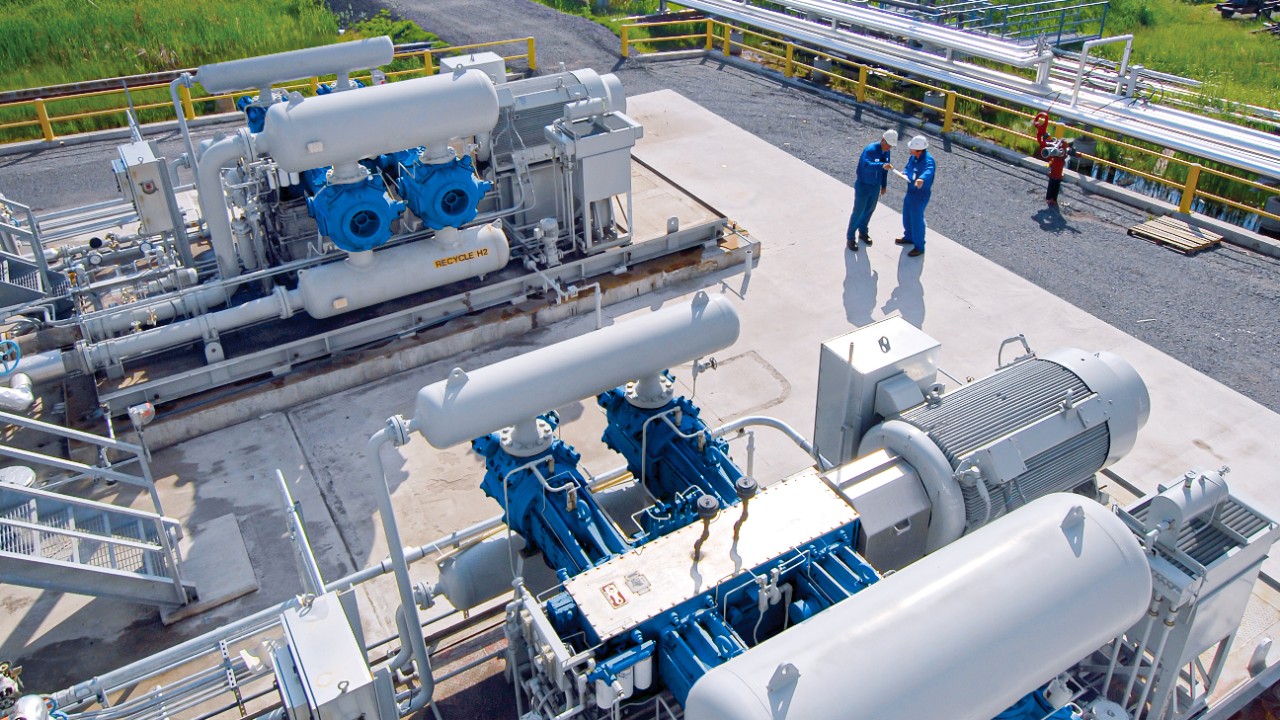

Two inspectors analyze the Downstream Oil Refinery Rig
Downstream Overview

The downstream oil and gas industry sector pertains to the refining and processing of oil and natural gas into usable products including fuels, lubricants, and petrochemicals such as fertilizers, rubbers, and polymers. The downstream market also includes hydrogen production and chemical manufacturing.



Refining

Petrochemical

Industrial Gases

Hydrogen

Ariel Compressors are used in a number of other critical services, including:

  • Hydrogen Makeup and Recycle
  • Feed Gas
  • Hydrogen Production
  • SynGas (HYCO)
  • Hydrotreating
  • Hydrocracking
  • Chemical processing
  • Isomerization
  • Offgas
  • Hydrogen Storage
  • Fuel Gas
  • RFG



Process, Refining & Chemical Compressors

Ariel's wide range of short-stroke, medium-speed reciprocating compressors utilize unlined and non-cooled compressor cylinder technology, representing the latest technology of reciprocating compressors and are the 21st-century reciprocating compressors for downstream applications.




API 618 Compressor Features



Designed in accordance with API 618 standards for critical process applications, Ariel’s process reciprocating compressors utilize field-proven, pre-designed components to provide the highest reliability and availability. This allows them to meet or exceed API 618 requirements for three years of uninterrupted service. Ariel’s approach to design and manufacturing takes advantage of standardized core components – allowing for full configuration on unique project requirements.

  • API 618 Type C long two compartment distance pieces
  • Precision tri-metal half shell bearings for crankshaft main and crankpin bearings
  • Heavy-duty, forged steel crankshaft, precision machined with integral counterweights
  • Horizontal balanced opposed throws
  • One-piece ductile iron crossheads with direct full pressure lubrication at top and bottom for minimum wear
  • Forged steel connecting rods.

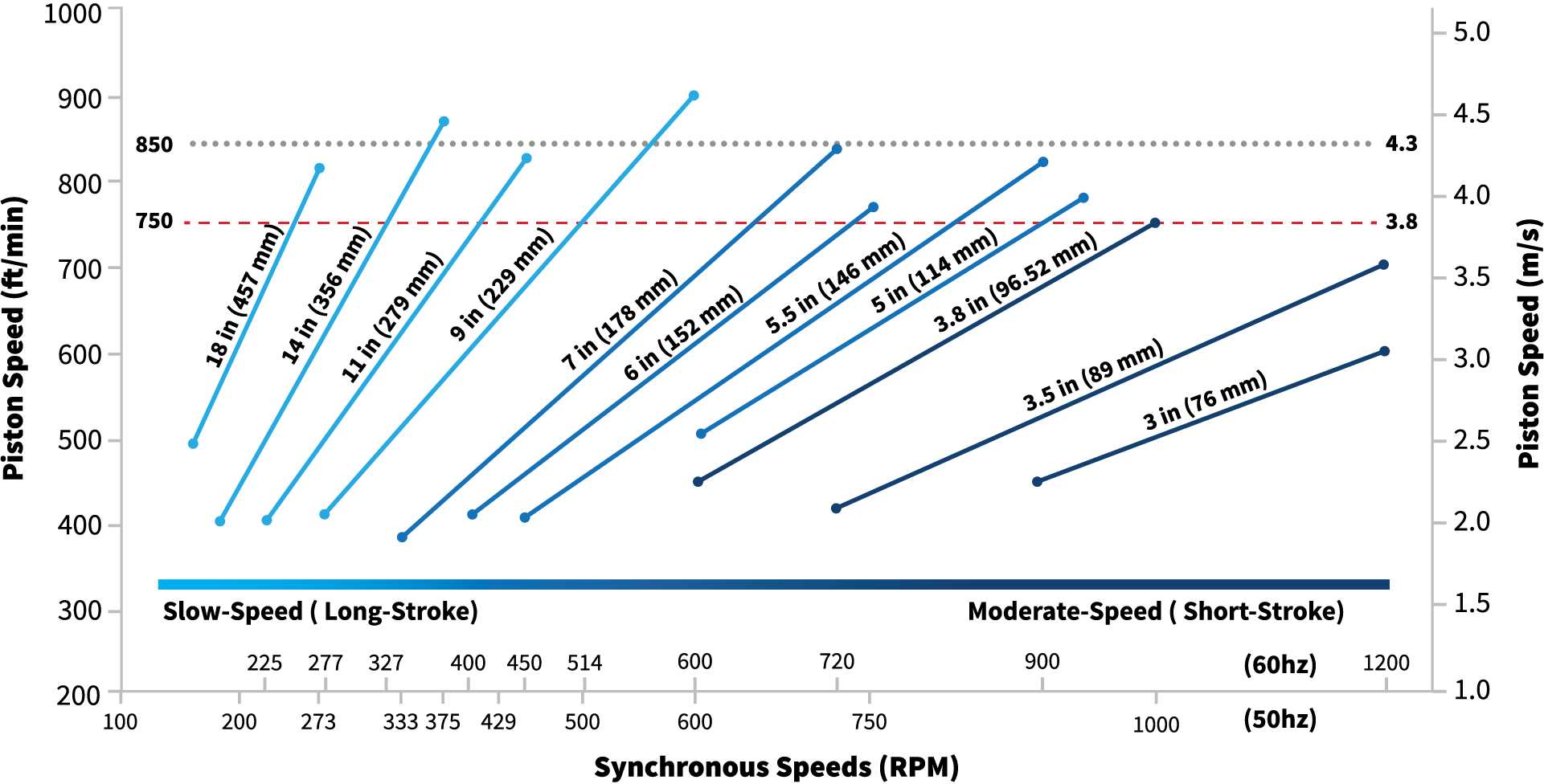

Ariel’s moderate-speed process compressors operate in comparable piston speed ranges to long-stroke, slow-speed compressors. Ariel’s extensive product line supports a wide range of process applications.

Models



Ariel's comprehensive line of moderate speed, reciprocating process compressors combine more than 40 years of research and development with the use of advanced design tools, field-proven installations and on-site experience. Ariel’s wide range of process compressors are designed to achieve or exceed three years of uninterrupted service, while meeting the most demanding industry requirements.


Frame Stroke Piston Speed RPM
JGA
3 450 900
JGJ 3.5 525 900
JGT 4.5 540 720
JGF 5.0 600 720
KBT 5.0 600 720
JGK 5.5 660 720
JGD 5.5 660 720

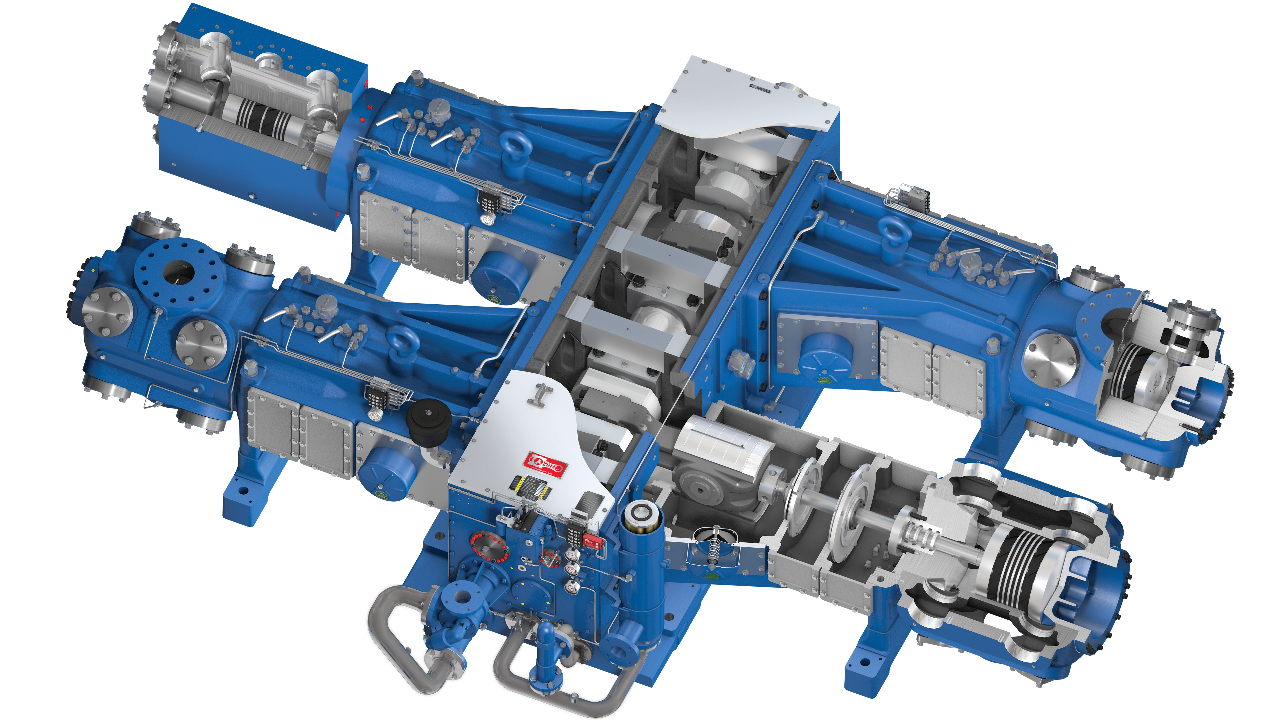

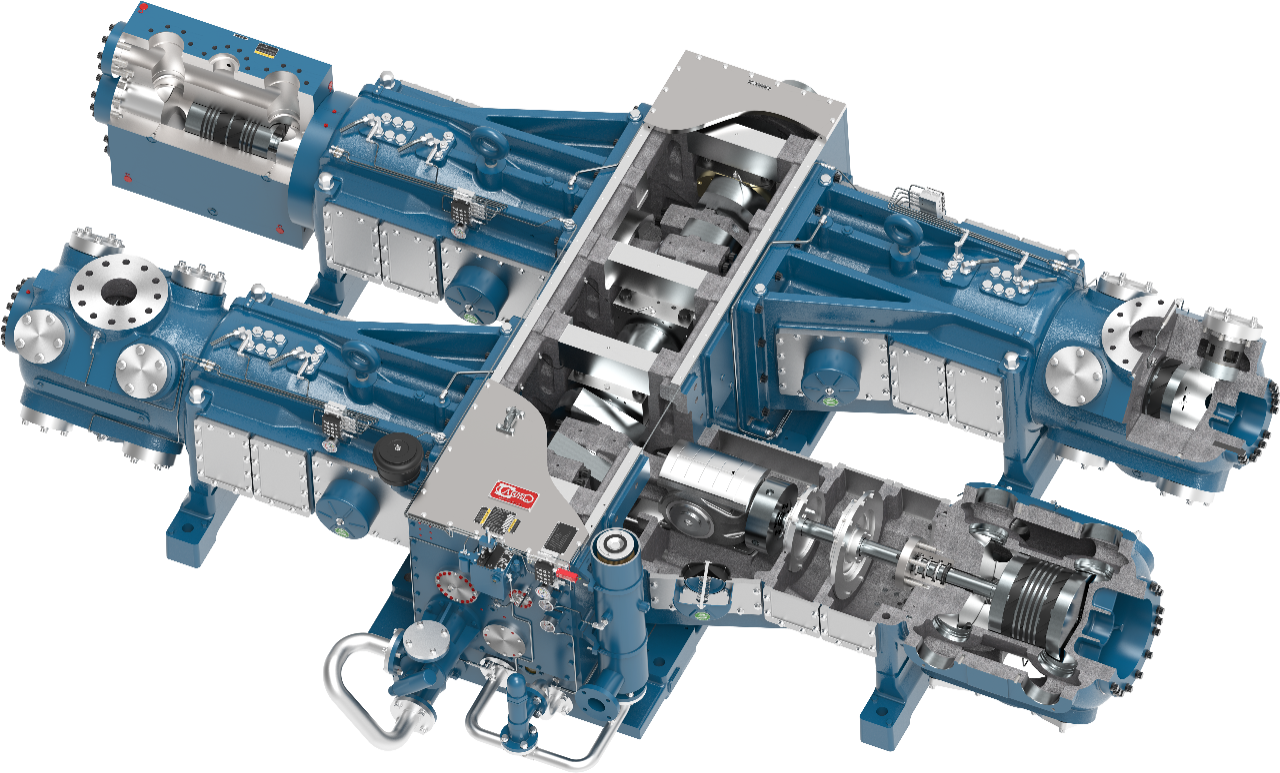

KBU 5.75 690 720
KBK 6.0 720 720
KBB 7.25 725 600


300+
Compressor packaged for process service
Icon of tubes and bottles
15 + Years Producing durable process compressors
1,200
Cylinder to Frame Combinations
31 compressor models suited for process service

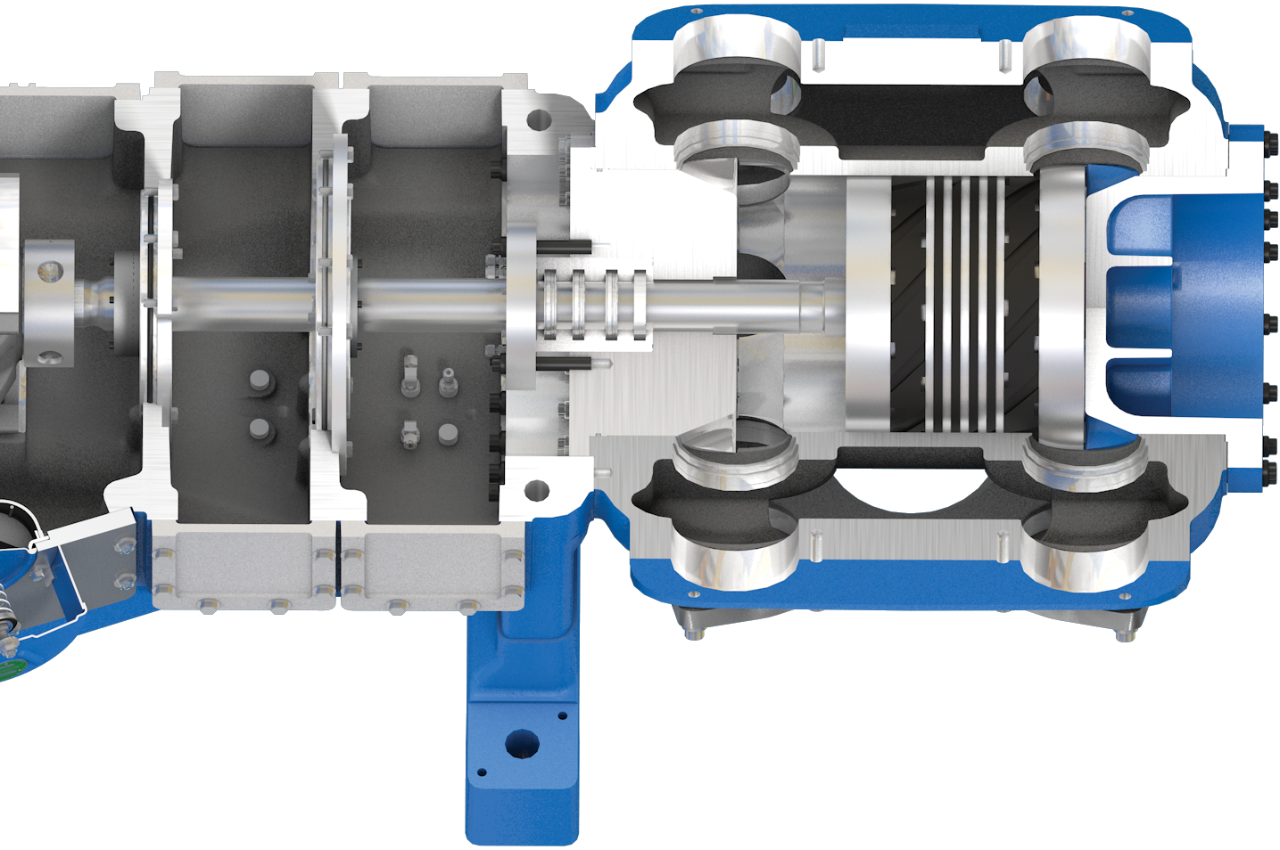

Process Cylinder Design Features



  • Wearbands to meet 5 psi bearing pressure for both lubricated and non-lubricated services
  • Indicator connections
  • Purged packing cases
  • Water cooled packing cases
  • Application-specific valve design
  • Application-specific non-metallic wear materials
  • O-ring sealed valve covers
  • Capacity and Load Control devices available
  • Hardened 4100 series alloy steel piston rods
  • 17-4 PH stainless steel and tungsten carbide coated piston rods available as options
  • Cylinder bores hardened to greater than 50 Rockwell C
  • Lubricated and non-lubricated applications


Explore More Compressor Applications

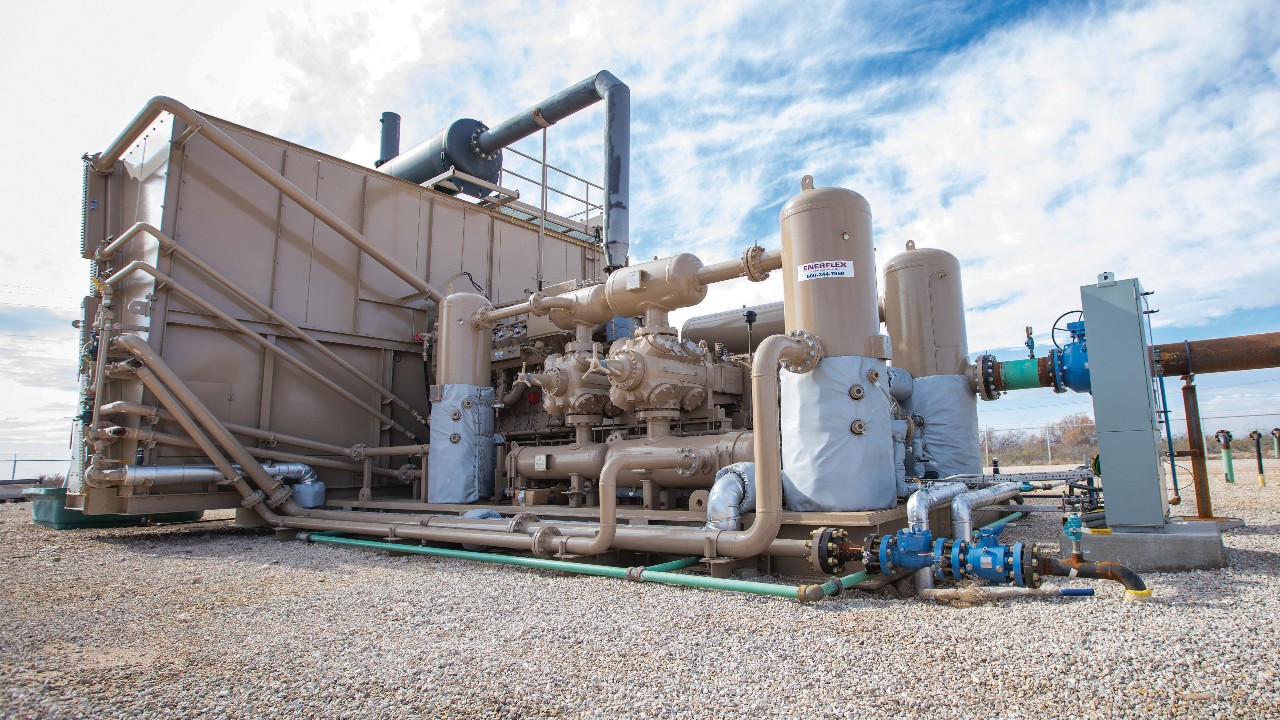

Upstream

Applications

Ariel provides high-value reciprocating compressors to enhance oil production, gather natural gas, or capture bio-methane gases.

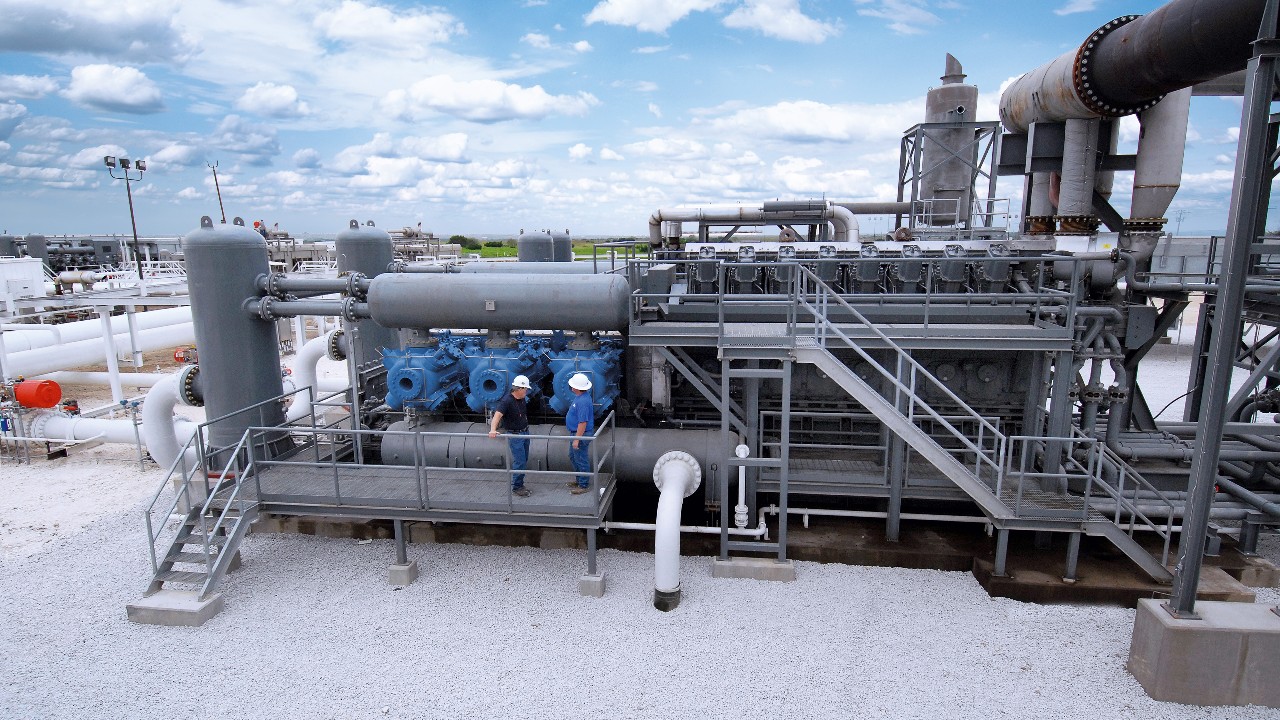

Midstream

Applications

Ariel compressors manufactured for processing, pipeline, and storage applications, deliver high-efficiency.

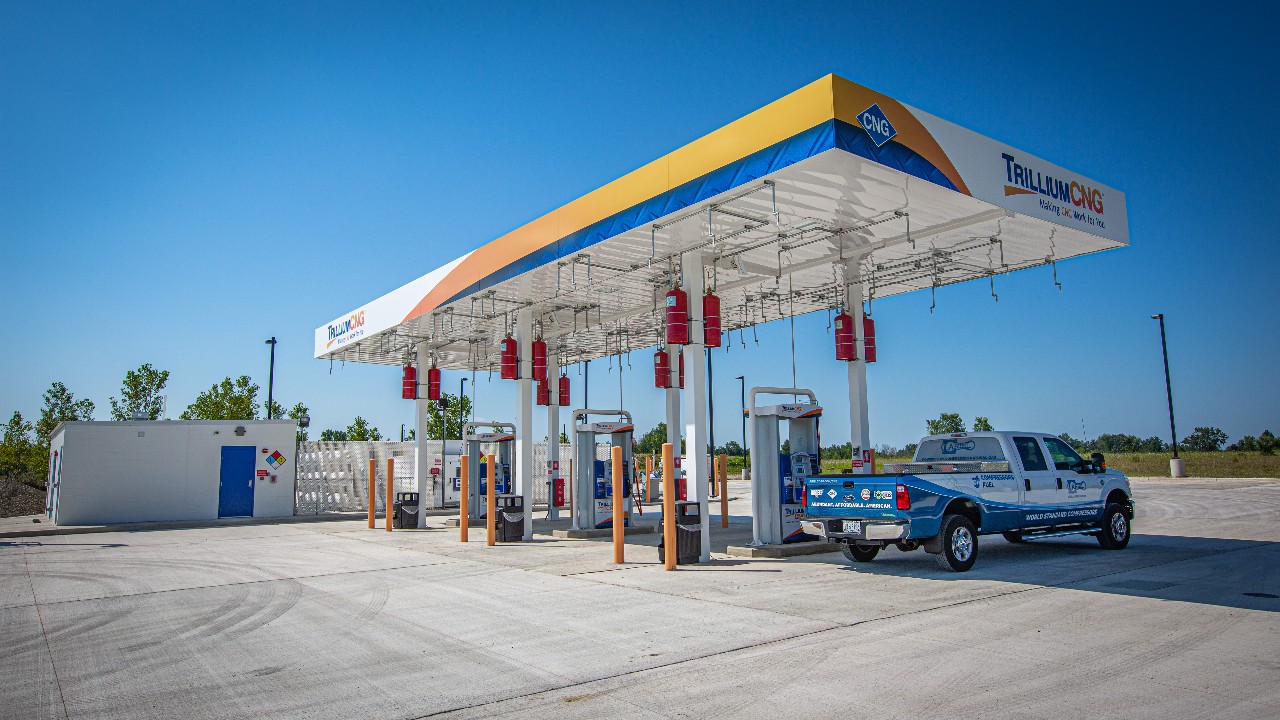

CNG For Vehicle Fueling
