The Ariel JG / JGA






Small Line



JG / JGA

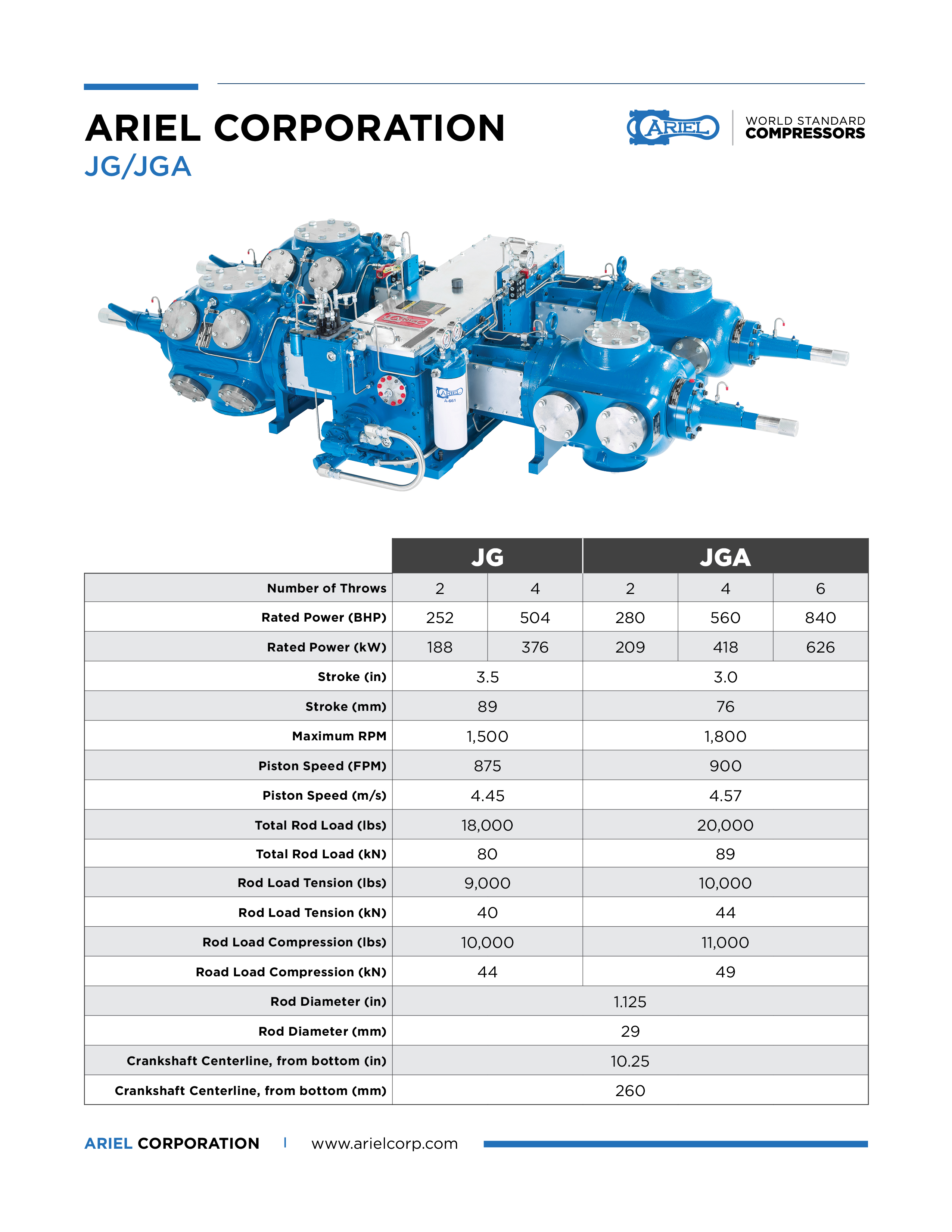

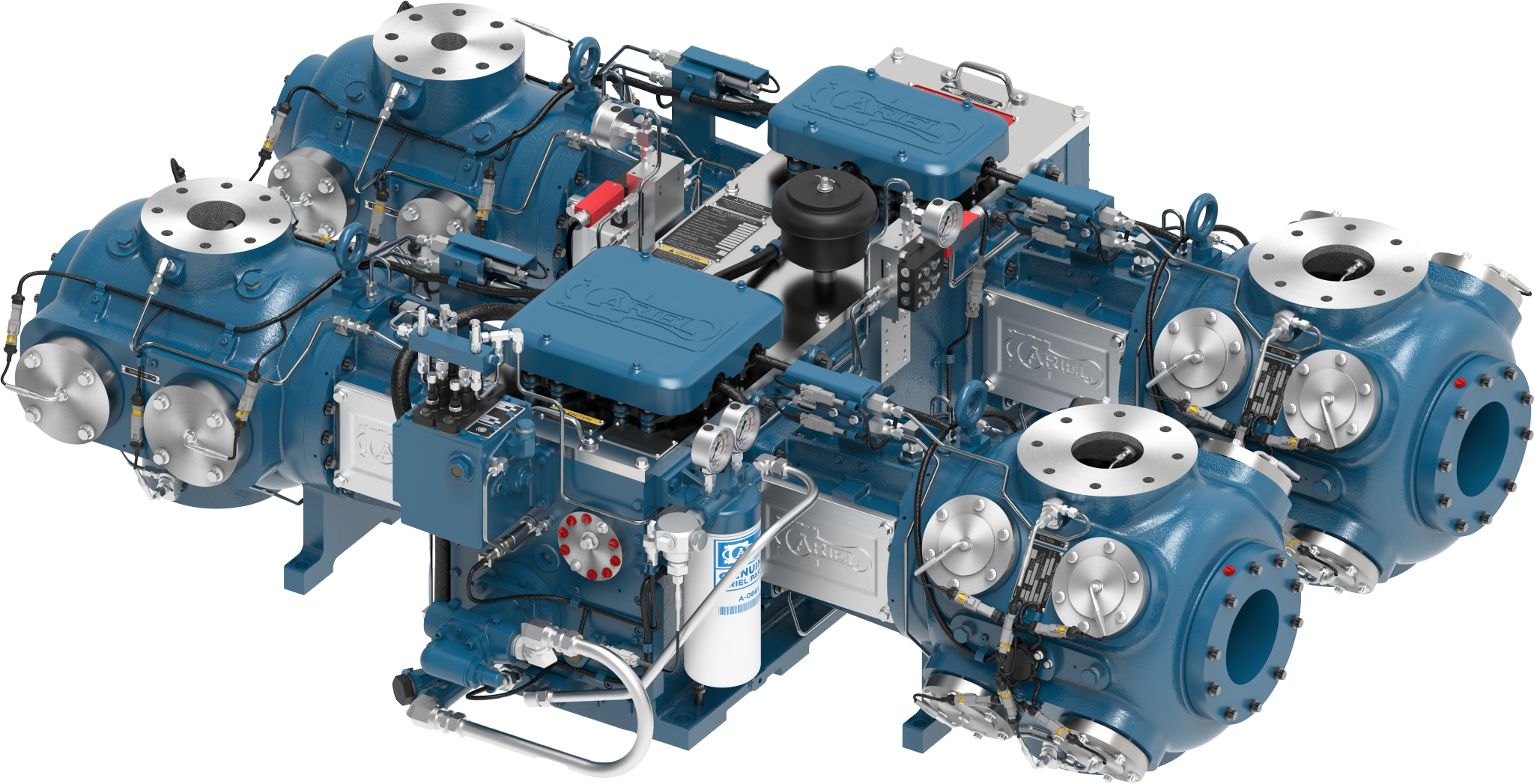

The JG and JGA are medium-sized, driver-rated separable reciprocating compressors utilized in gas gathering, fuel-gas boosting, underbalanced drilling, and CNG applications.

The JG, first introduced in 1966, was Ariel's entry into the domestic reciprocating compressor market. The first 150 frames built were JG/2 and JG/4 and is still Ariel's smallest compressor available in a four-throw configuration. The JGA offers modern gas lift capabilities as shale well production increase in volume.

  JG JGA

Rated Power

252

280

Stroke (in)

3.5

3.0

Max RPM

1,500

1,800

Piston Speed

875

900

Total Rod Load (lbs)

18,000

20,000

Tension (lbs)

9,000

10,000

Compression (lbs)

10,000

11,000

Average Weight (lbs)

900

900

Max Length (in)

33

33

Nominal Width (in)

80

80

Crankshaft Centerline (in)

10.25

10.25

  JG JGA

Rated Power

504

560

Stroke (in)

3.5

3.0

Max RPM

1,500

1,800

Piston Speed

875

900

Total Rod Load (lbs)

18,000

20,000

Tension (lbs)

9,000

10,000

Compression (lbs)

10,000

11,000

Average Weight (lbs)

1,700

1,700

Max Length (in)

58

58

Nominal Width (in)

80

80

Crankshaft Centerline (in)

10.25

10.25

  JGA

Rated Power

840

Stroke (in)

3.0

Max RPM

1,800

Piston Speed

900

Total Rod Load (lbs)

20,000

Tension (lbs)

10,000

Compression (lbs)

11,000

Average Weight (lbs)

3,800

Max Length (in)

86

Nominal Width (in)

80

Crankshaft Centerline (in)

10.25




Product Features



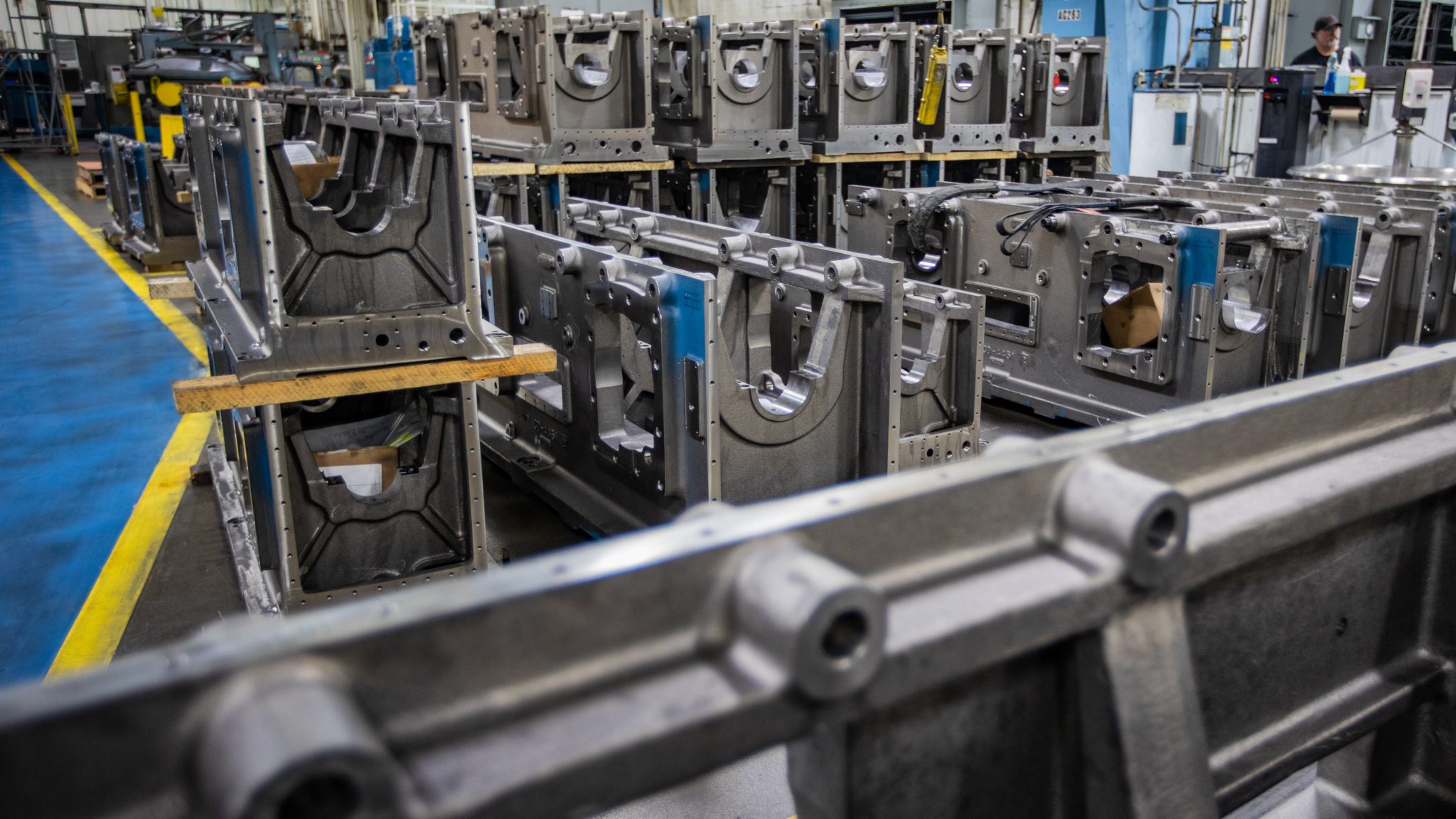

Rugged Crankcase

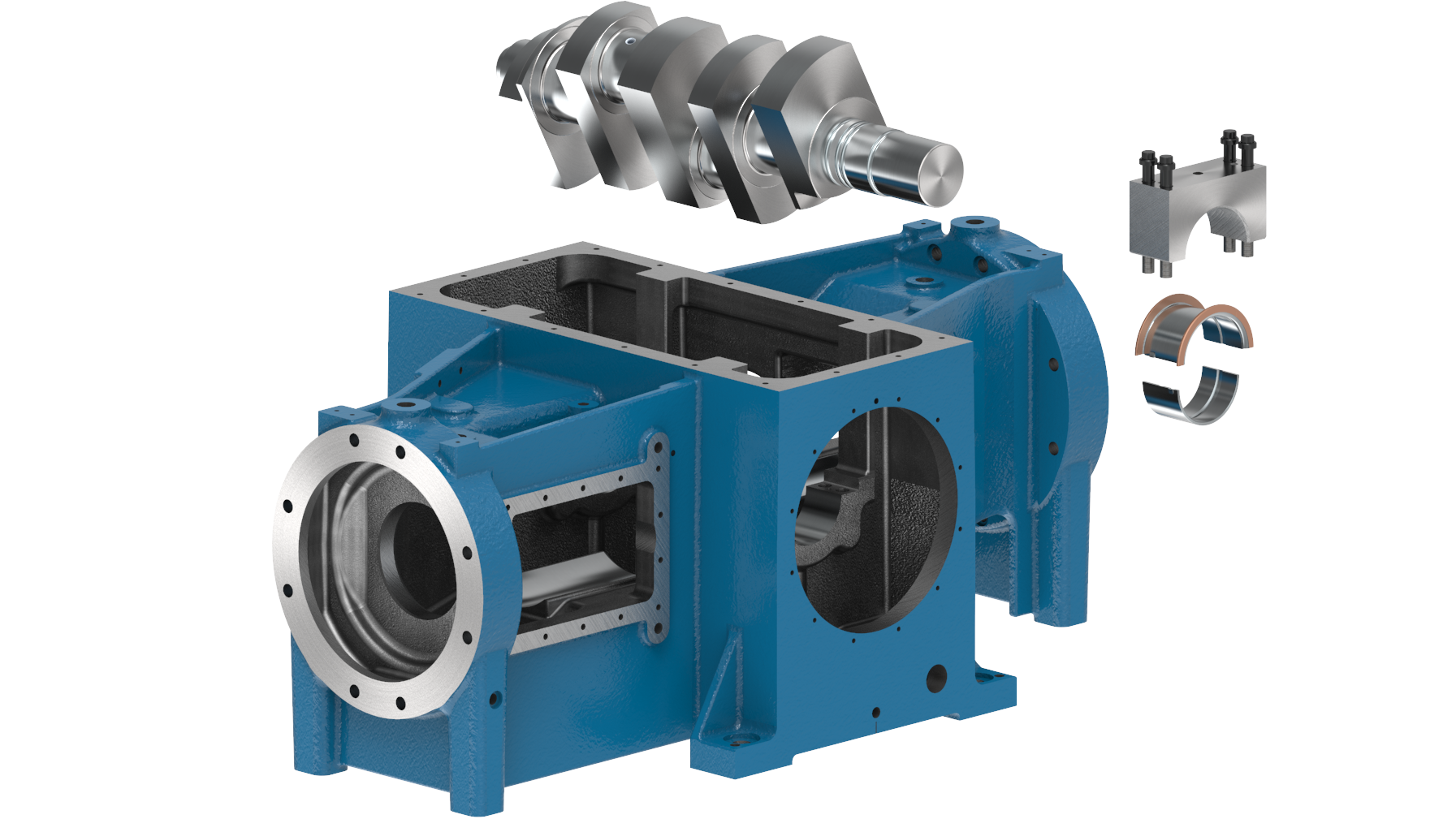

Ariel crankcases are designed for long service life and ease of access during maintenance. They feature a heavily-ribbed, high-strength cast-iron base with a removable, lightweight aluminum top cover.

High-Efficiency Oil Filters



Ariel JG/JGA compressors feature high-efficiency, non-bypassing spin-on oil filters rated at 5-micron nominal and 17-micron absolute.

Durable Pistons and Rods

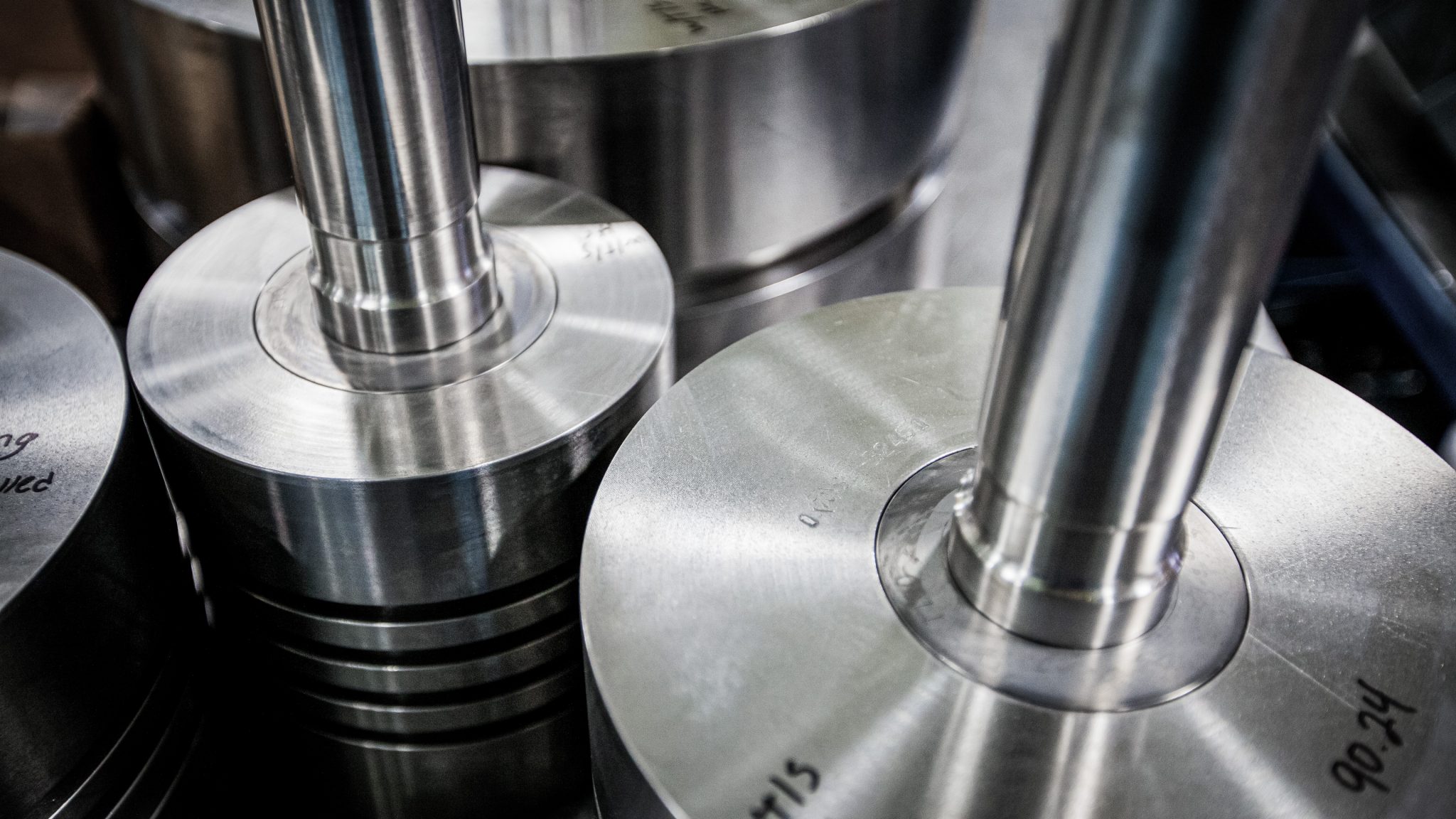

JG/JGA compressors feature wear-resistant steel or gray iron pistons and precision-ground alloy steel piston rods with locking crosshead nuts. Rolled threads are 1/4" under rod diameter for easy installation.




Materials

  • Gray Iron Crankcase: Forged steel crankshaft, gray iron crosshead guide, tri-metal main bearing

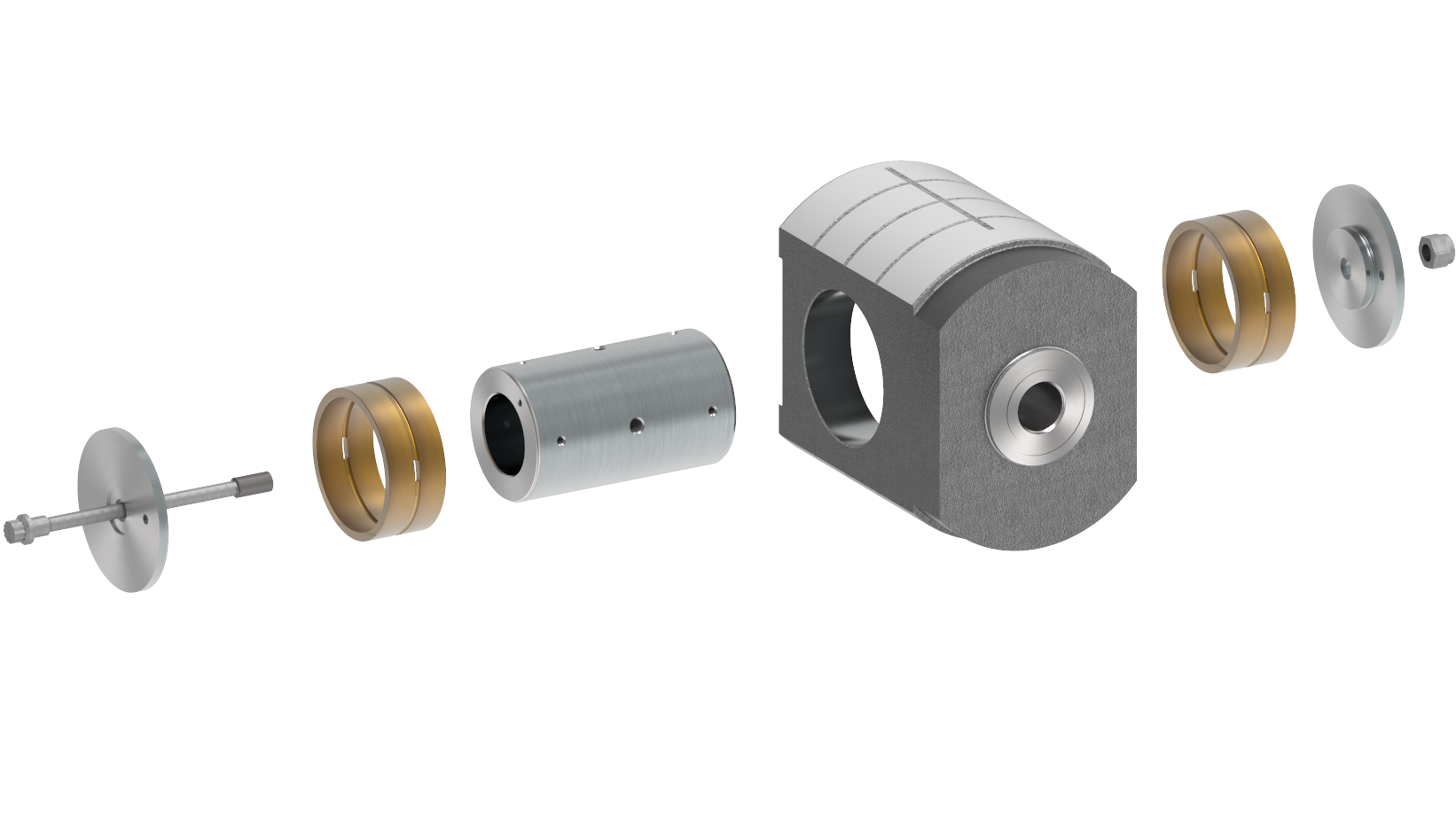

  • Ductile Iron Crosshead: Alloy steel crosshead pin
  • Forged Steel Connecting Rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 stress bolts

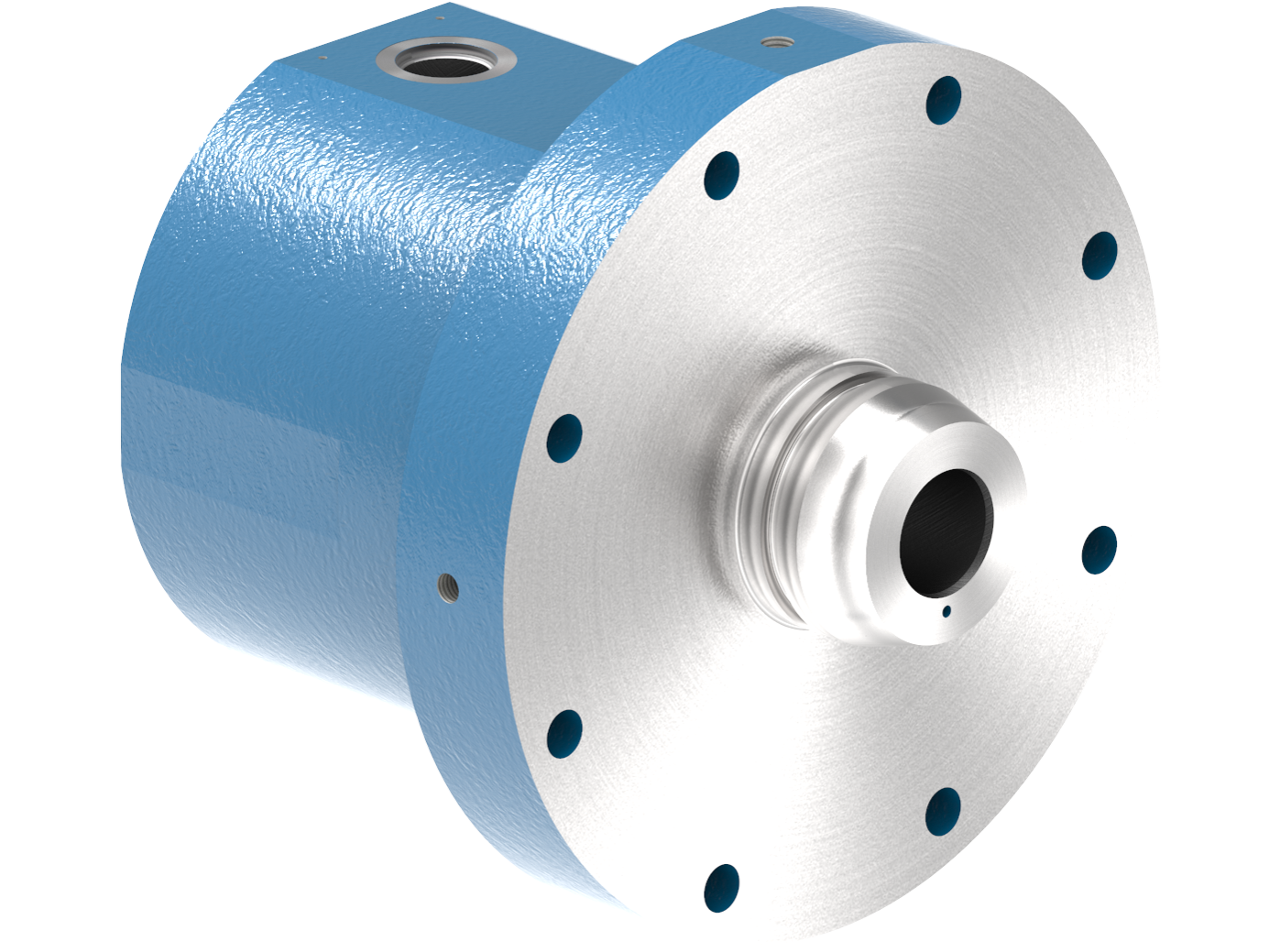

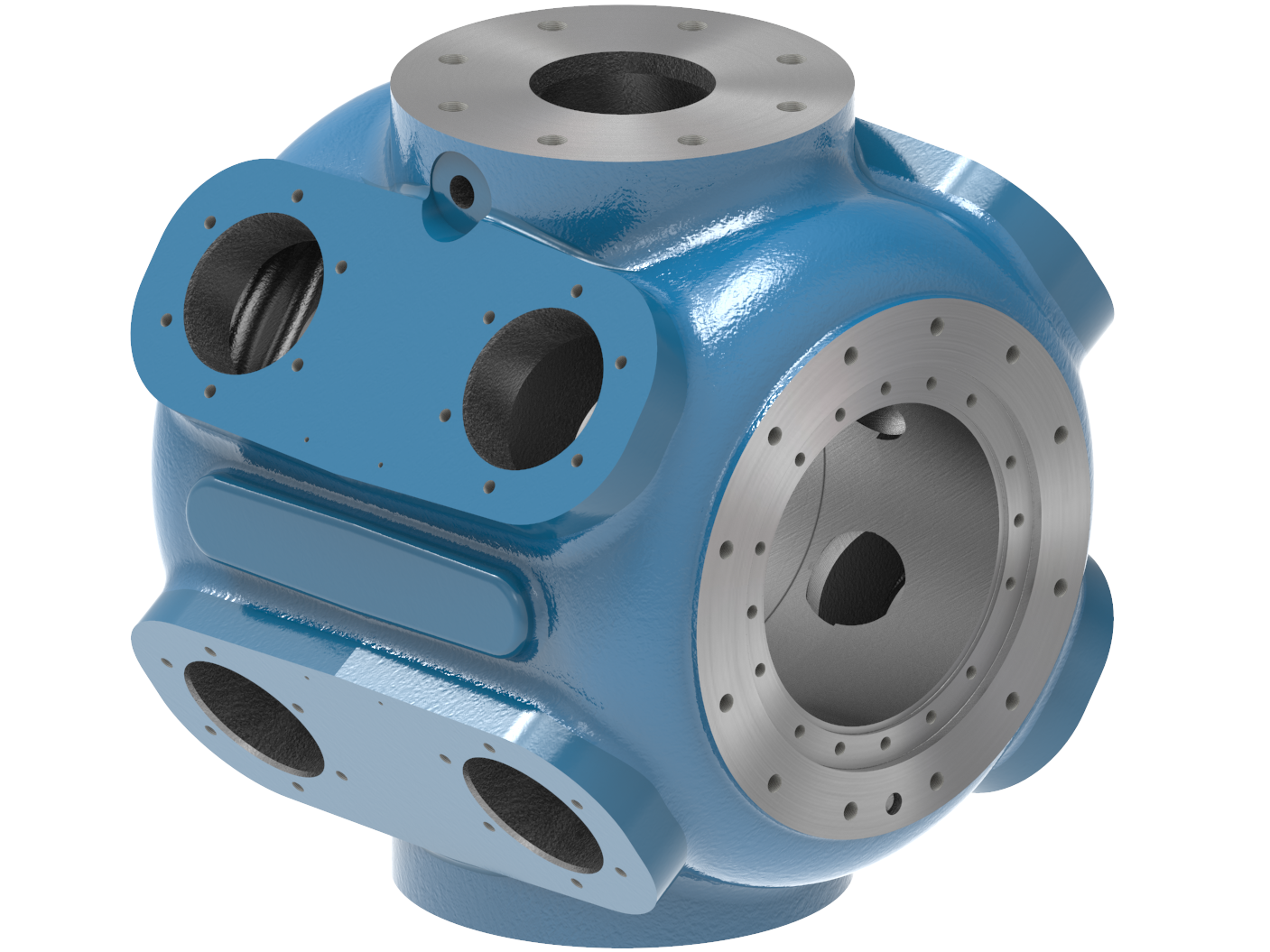

Innovative Cylinders

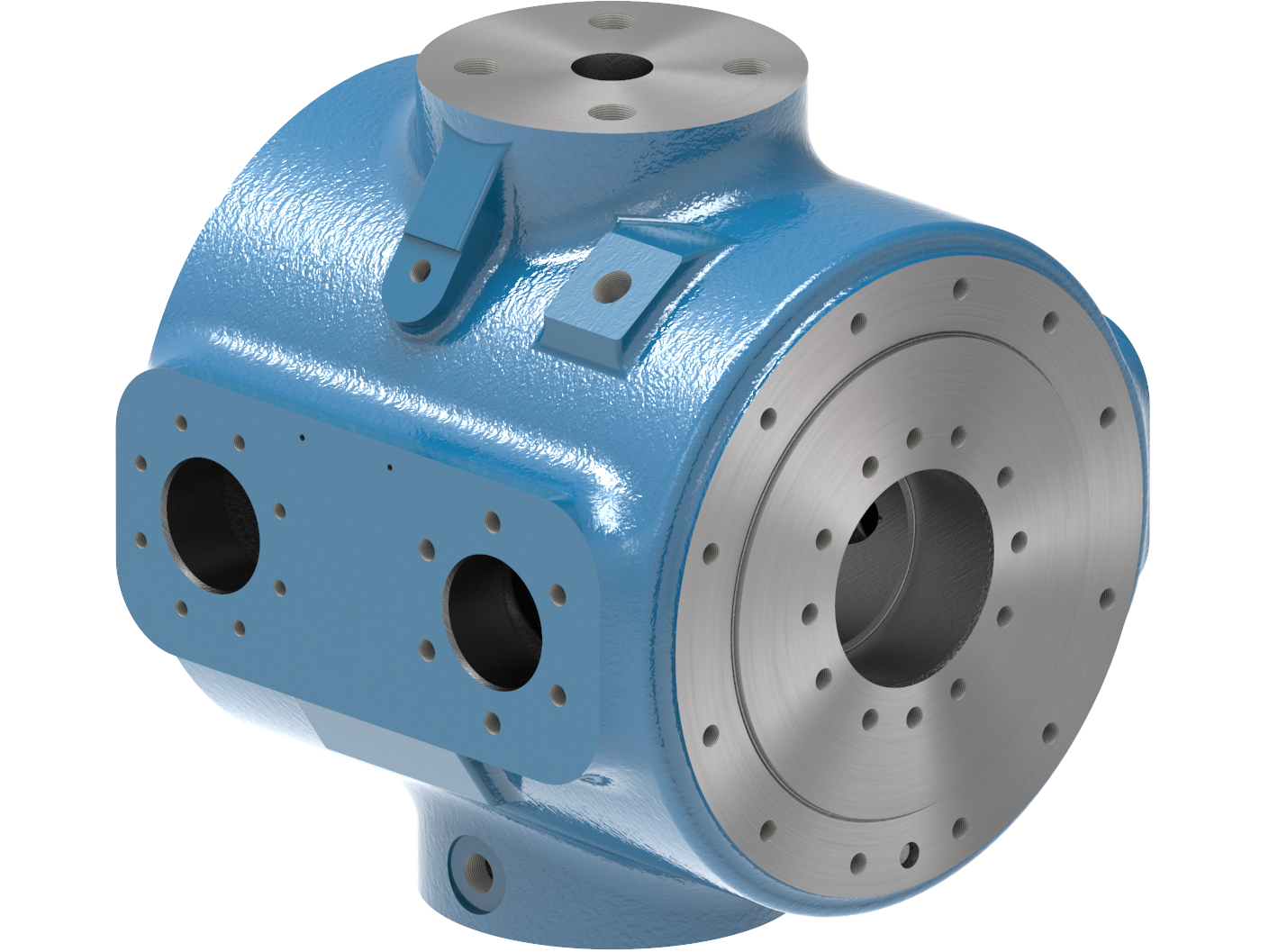

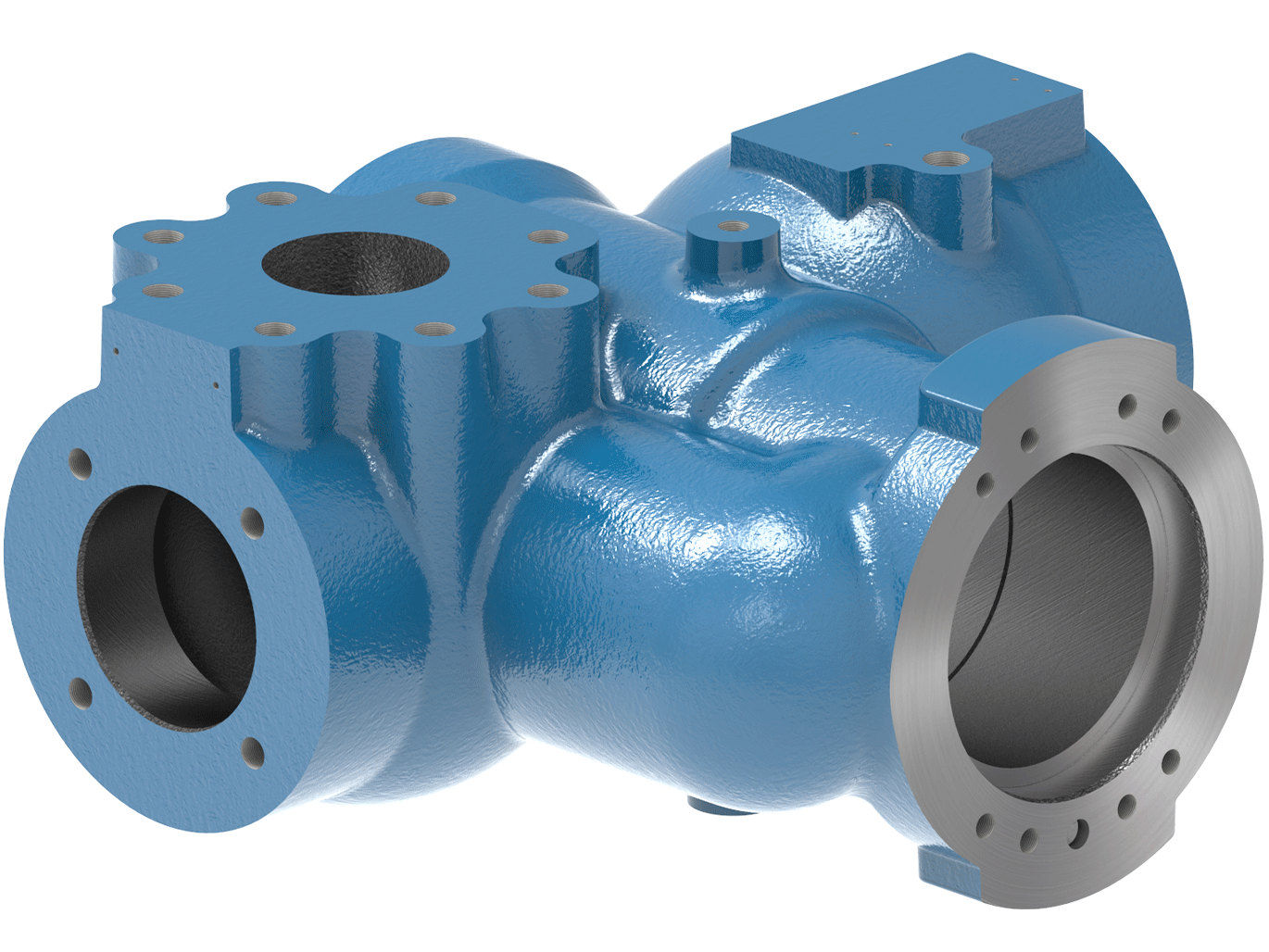

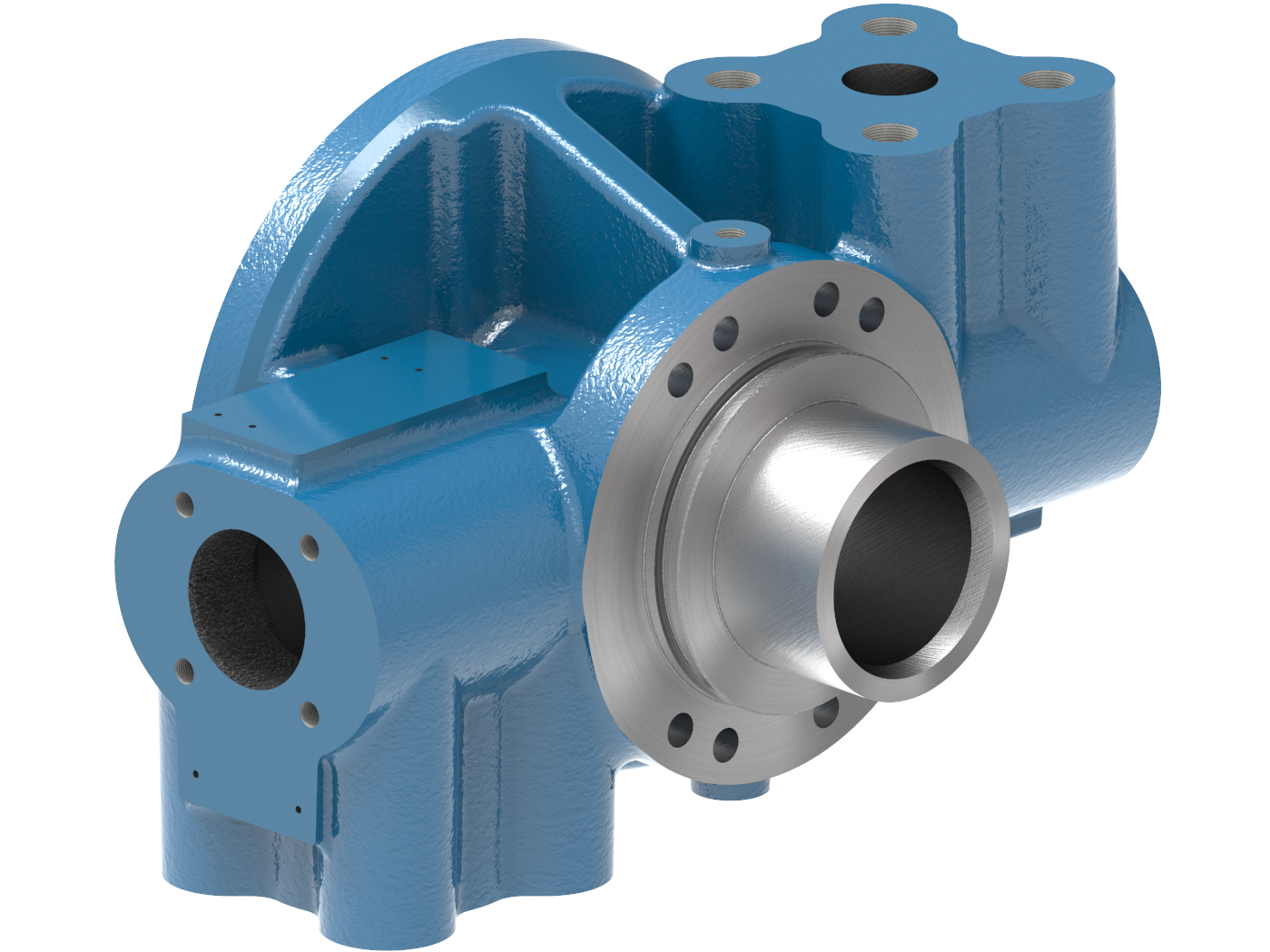

Ariel produces versatile cylinders that can be utilized over wide pressure ranges without compromise by using valves that effectively balance reliability and performance. For each compressor frame size, Ariel's lineup of cylinders can fully utilize that frame's horsepower and rod load capabilities. Cylinders can be combined in hundreds of different configurations to deliver the precise volume and pressure of gas required.

Ariel 7 Performance Software is used by Ariel engineers and industry experts to model and design compressor configurations for their specific application. All of our cylinder designs, past and present, can be accessed to duplicate your existing compressor operations or design a new build.
