The Ariel JGC / JGD / JGF






Large Line



JGC / JGD / JGF

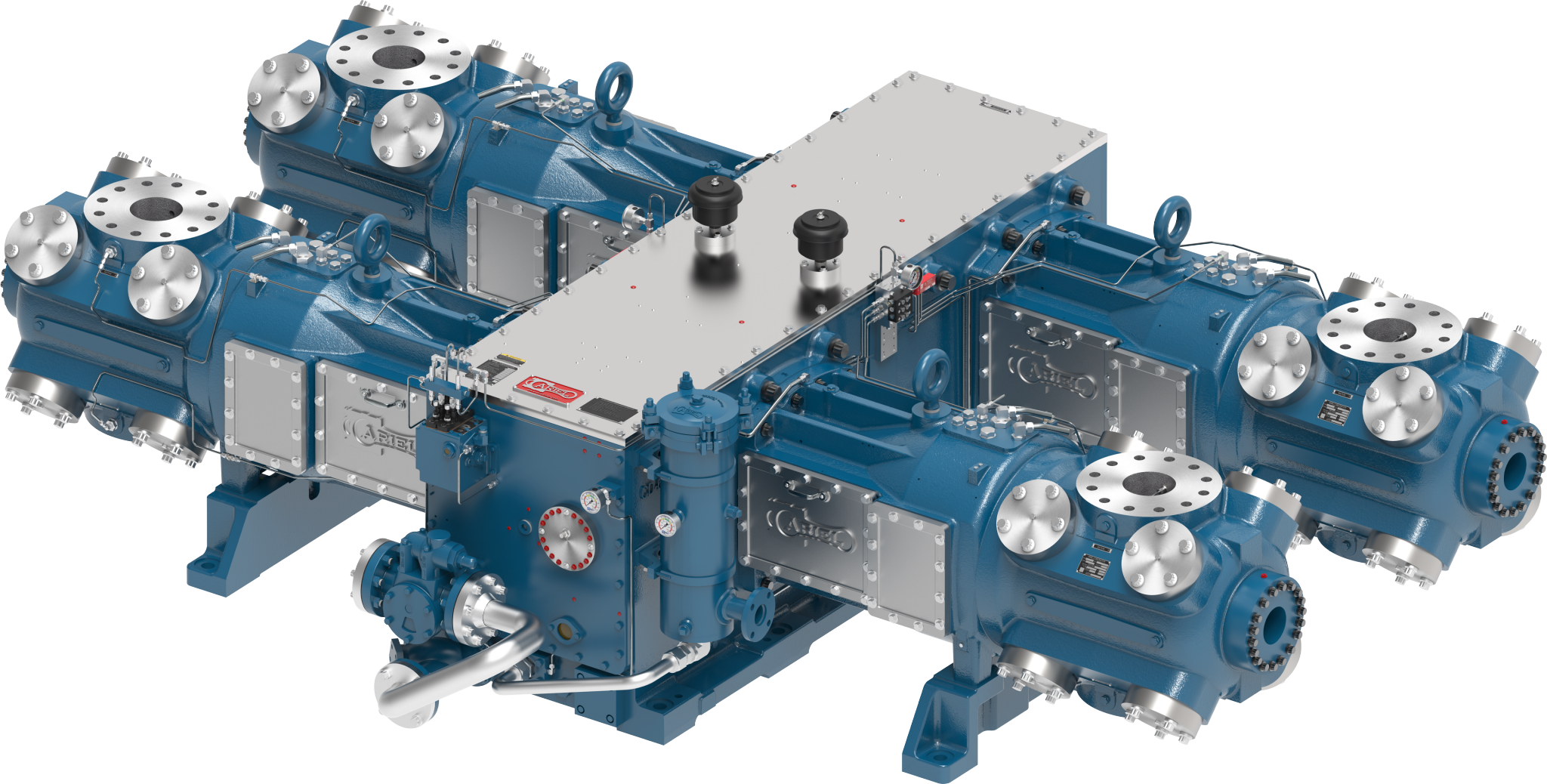

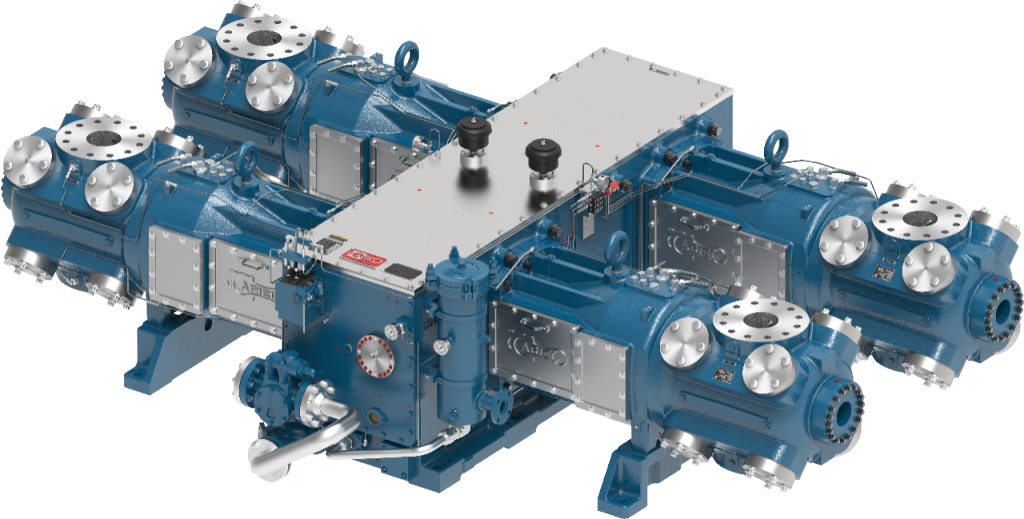

The JGC/JGD/JGF – Ariel's large frame, medium-speed reciprocating compressors are designed to pair with electric motors and natural gas engines. These compressors are engineered for applications requiring large horsepower drivers for high-compression capacity projects.

The JGC/D/F delivers 2,000, 4,000, or 6,000 horsepower (depending on the number of throws) to process and industrial gases, prolific shale wells, and myriad other compressor applications.

  JGC JGD JGF

Rated Power

2,070

2,070

2,070

Stroke (in)

6.5

5.5

5.0

Max RPM

1,000

1,200

1,200

Piston Speed

1,083

1,100

1,000

Total Rod Load (lbs)

114,000

114,000

114,000

Tension (lbs)

57,000

57,000

57,000

Compression (lbs)

60,000

60,000

60,000

Average Weight (lbs)

7,900

7,900

7,900

Max Length (in)

67

67

67

Nominal Width (in)

185

185

185

Crankshaft Centerline (in)

22

22

22

  JGC JGD JGF

Rated Power

4,140

4,140

4,140

Stroke (in)

6.5

5.5

5.0

Max RPM

1,000

1,200

1,400

Piston Speed

1,083

1,100

1,167

Total Rod Load (lbs)

114,000

114,000

114,000

Tension (lbs)

57,000

57,000

57,000

Compression (lbs)

60,000

60,000

60,000

Average Weight (lbs)

16,500

16,500

16,500

Max Length (in)

117

117

117

Nominal Width (in)

185

185

185

Crankshaft Centerline (in)

22

22

22

  JGC JGD JGF

Rated Power

6,210

6,210

6,210

Stroke (in)

6.5

5.5

5.0

Max RPM

1,000

1,200

1,400

Piston Speed

1,083

1,100

1,167

Total Rod Load (lbs)

114,000

114,000

114,000

Tension (lbs)

57,000

57,000

57,000

Compression (lbs)

60,000

60,000

60,000

Average Weight (lbs)

22,800

22,700

22,700

Max Length (in)

159

159

159

Nominal Width (in)

185

185

185

Crankshaft Centerline (in)

22

22

22




Product Features



Efficient Valves

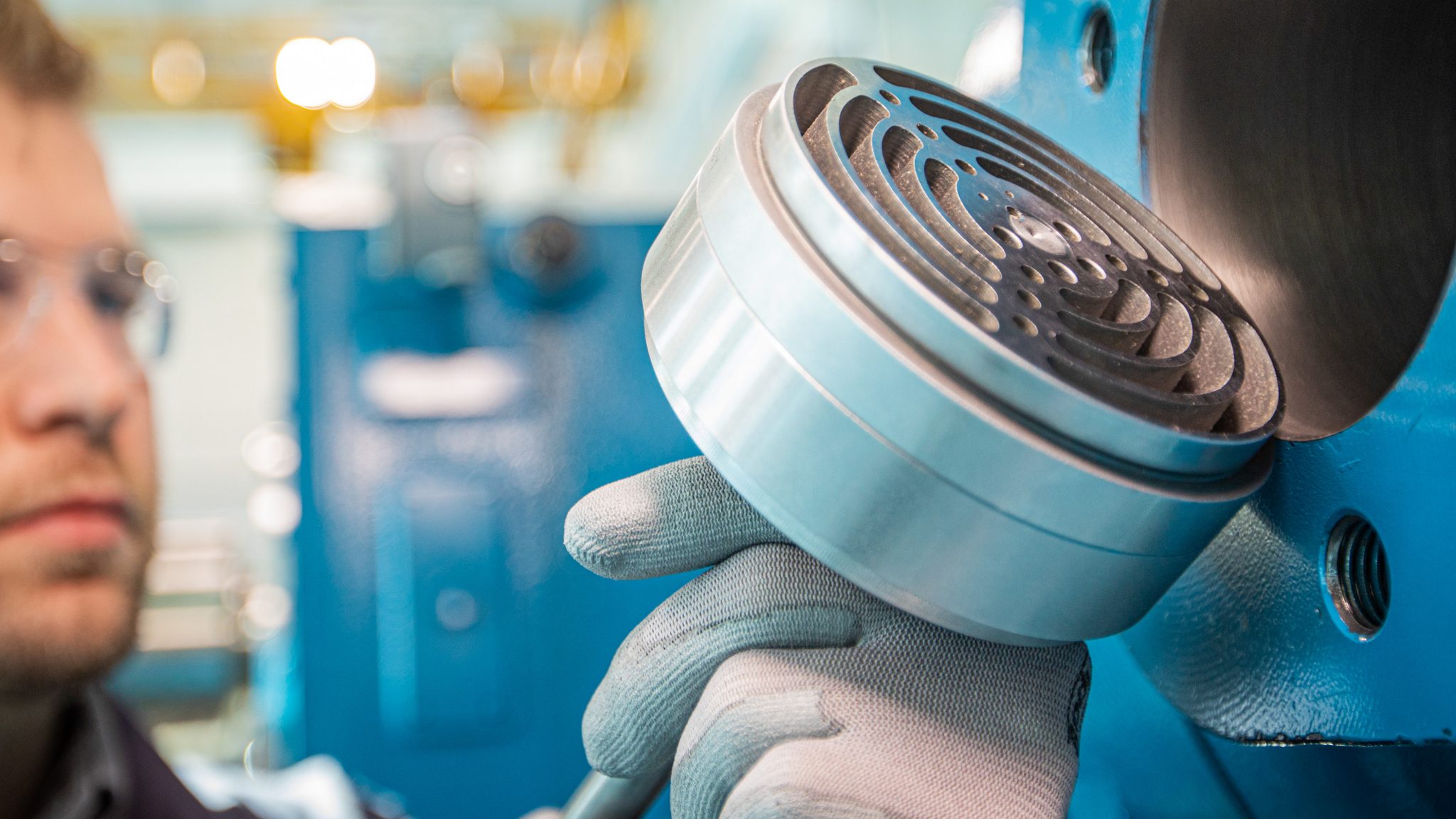

Plate-type valves are designed for modern speeds, utilizing non-metallic sealing elements as standard. Valves are selected to comply with established low-valve velocity standards.

Heavy-Duty Crankshafts

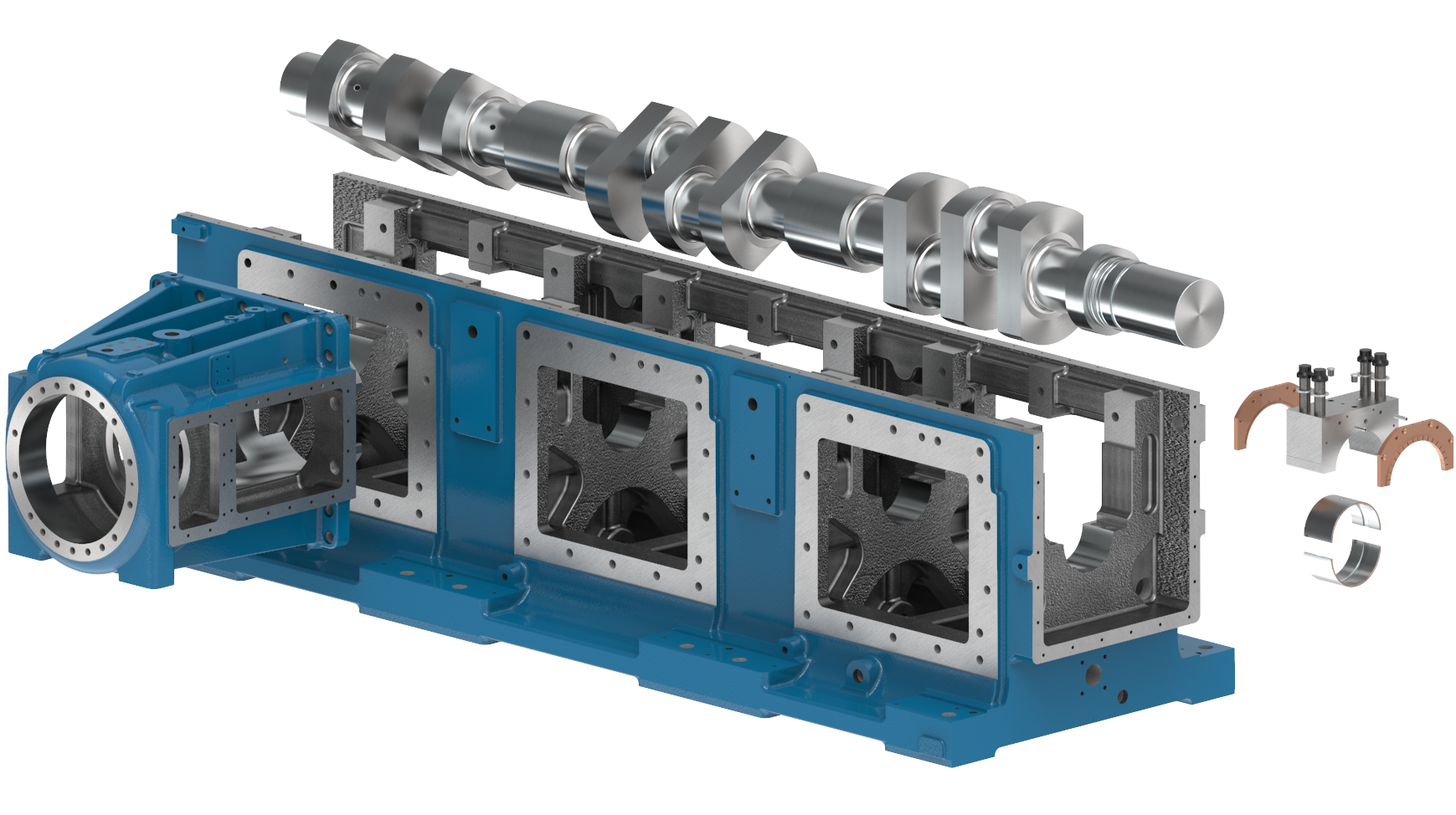

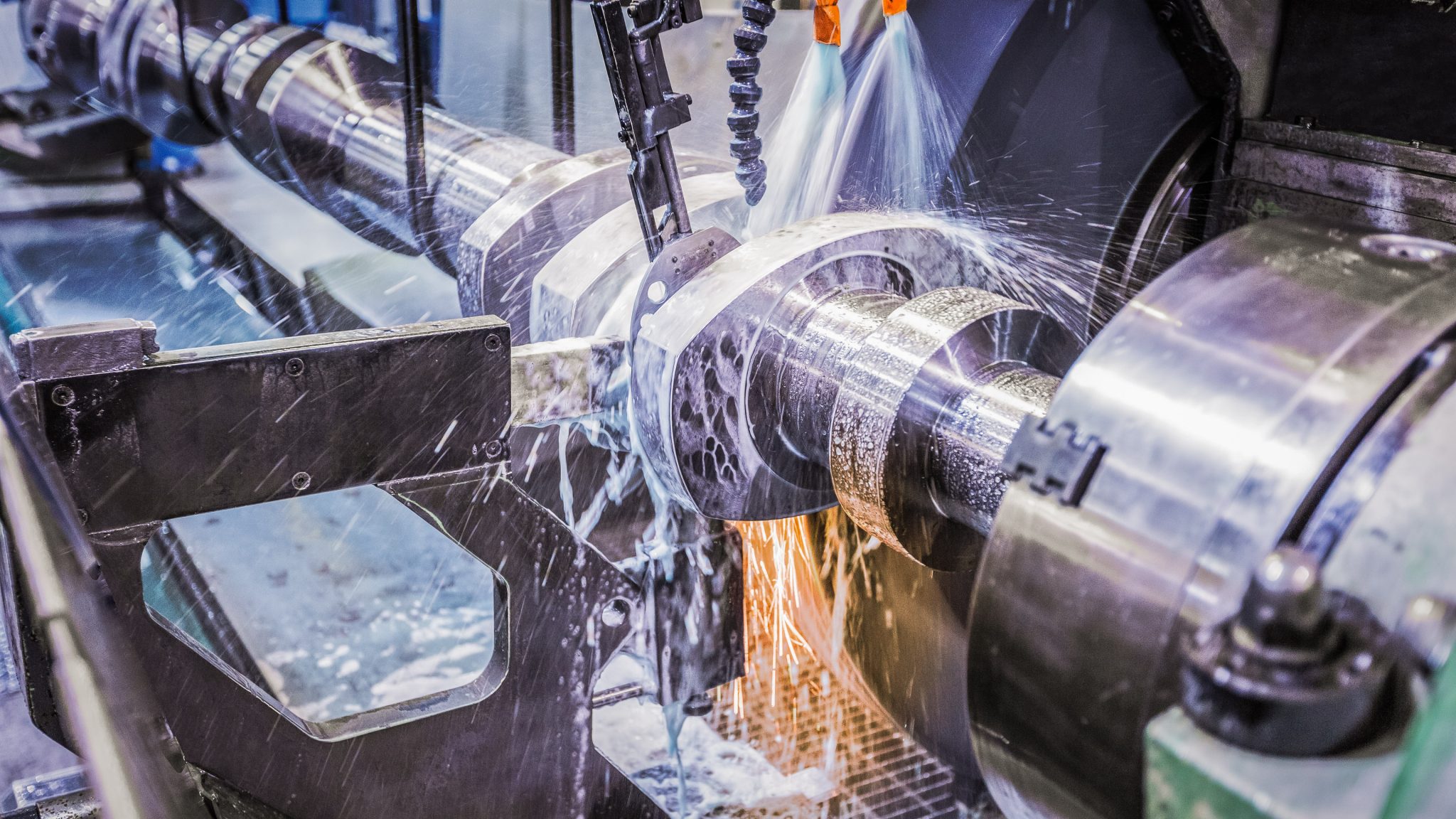

The JGC/JGD/JGF compressors feature forged steel, precision-machined crankshafts with integral counter-weights manufactured specifically by Ariel Corporation.

High-Efficiency Oil Filters

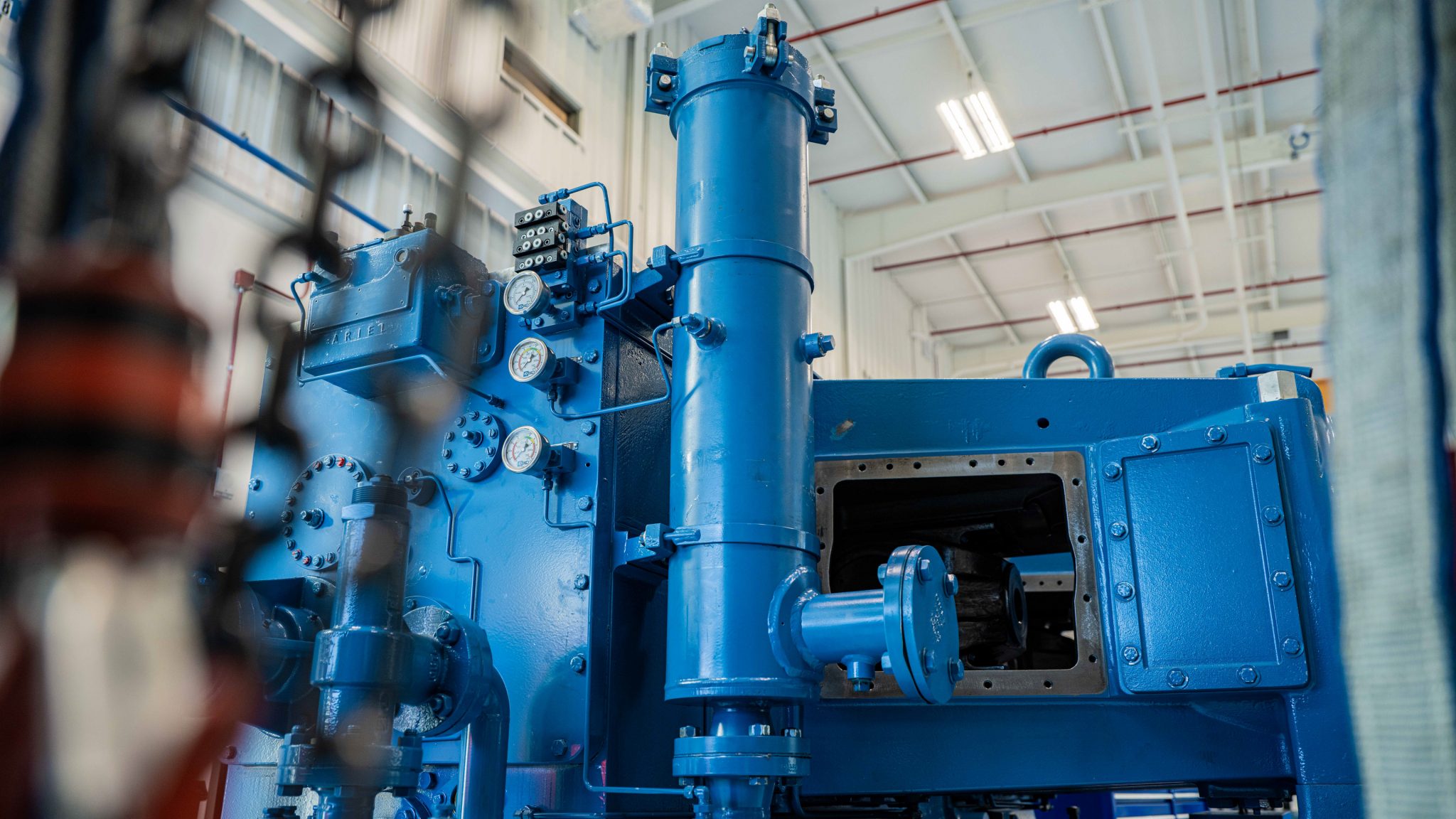

Ariel JGC/JGD/JGF compressors feature high-efficiency, canister-type oil filters rated at 1-micron nominal and 12-micron absolute.




Materials

  • Gray Iron Crankcase: Forged steel crankshaft, gray iron crosshead guide, bronze thrust bearing, tri-metal main bearing

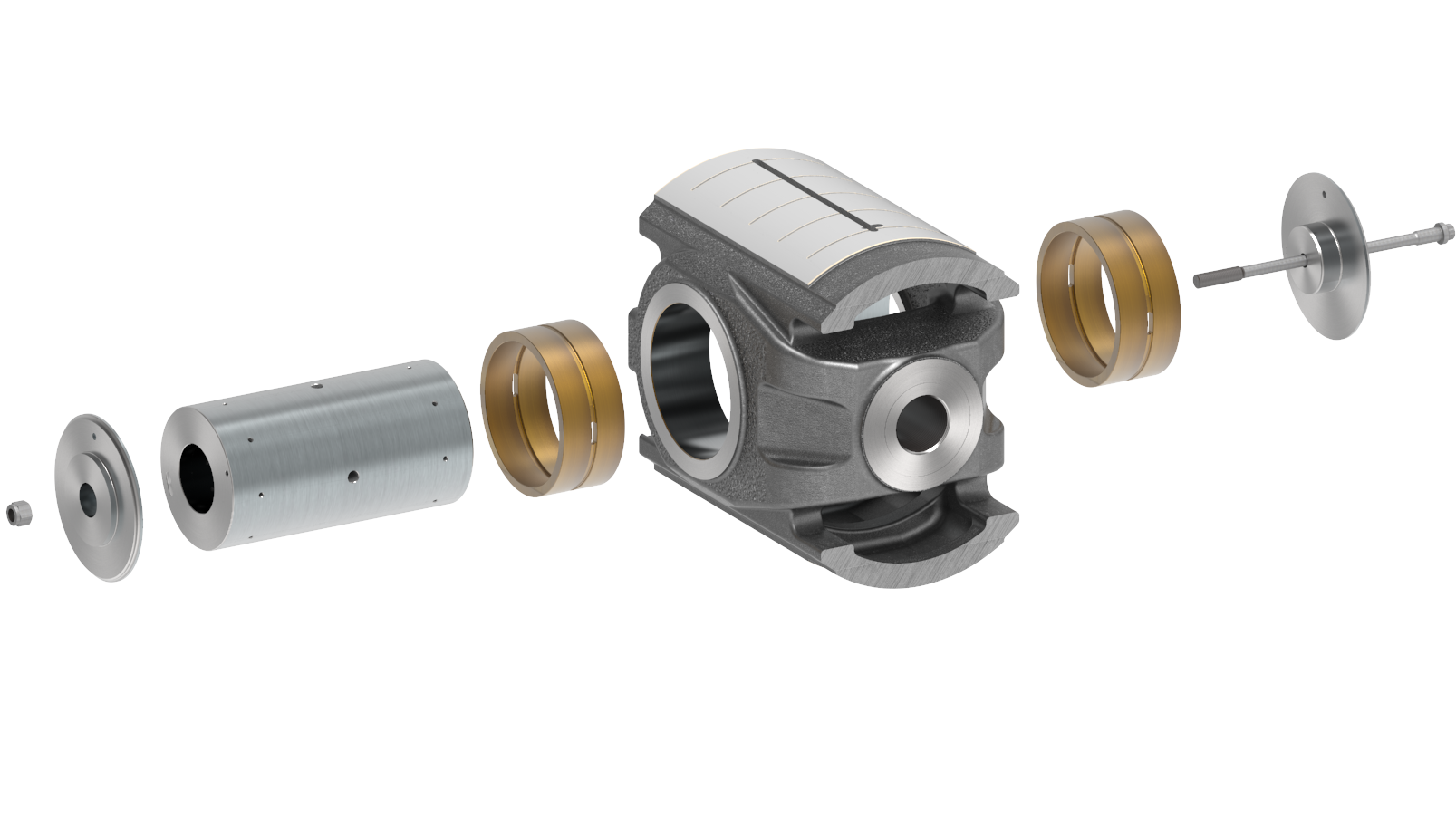

  • Ductile Iron Crosshead: Alloy steel crosshead pin

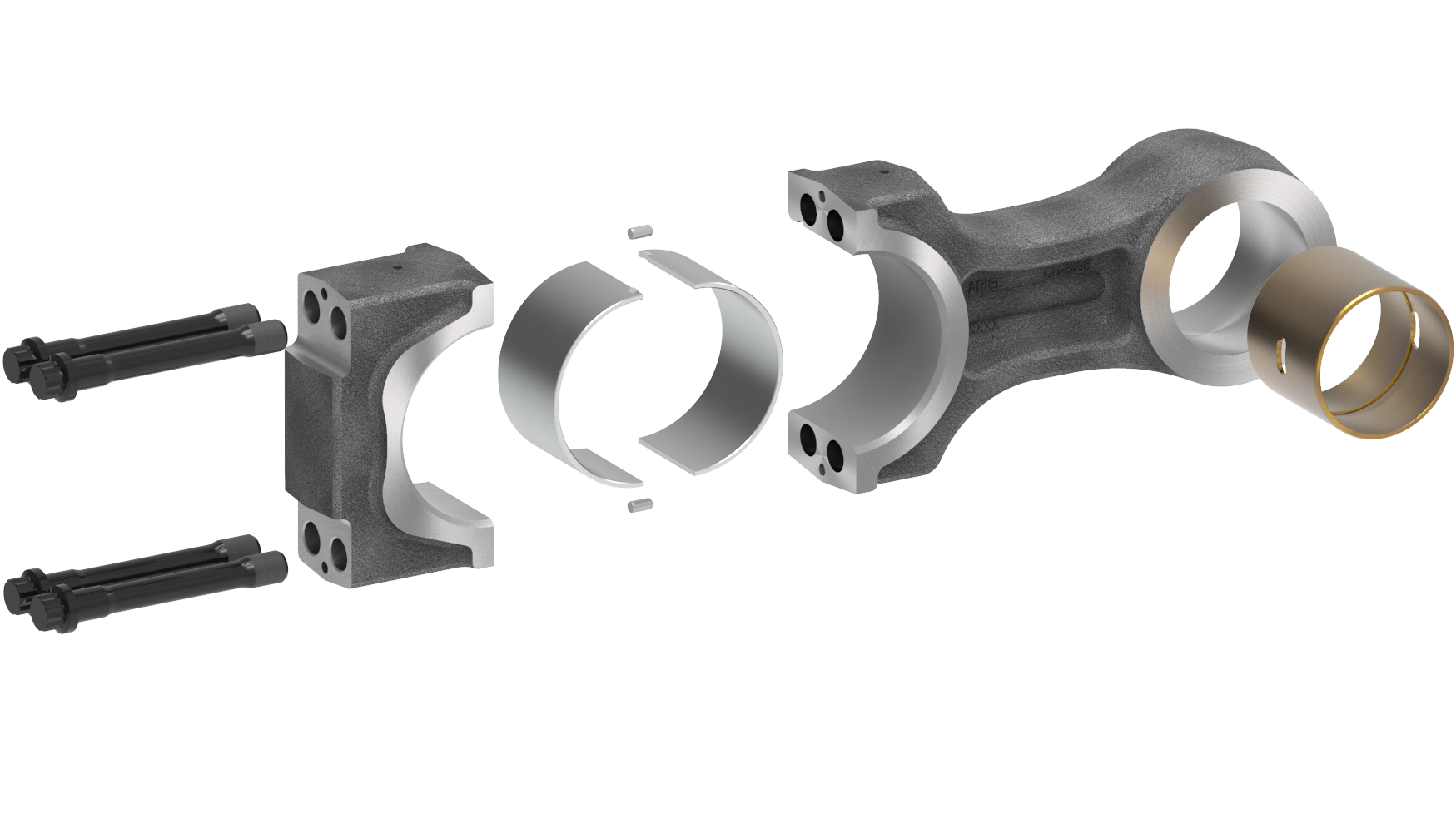

  • Forged Steel Connecting Rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 stress bolts

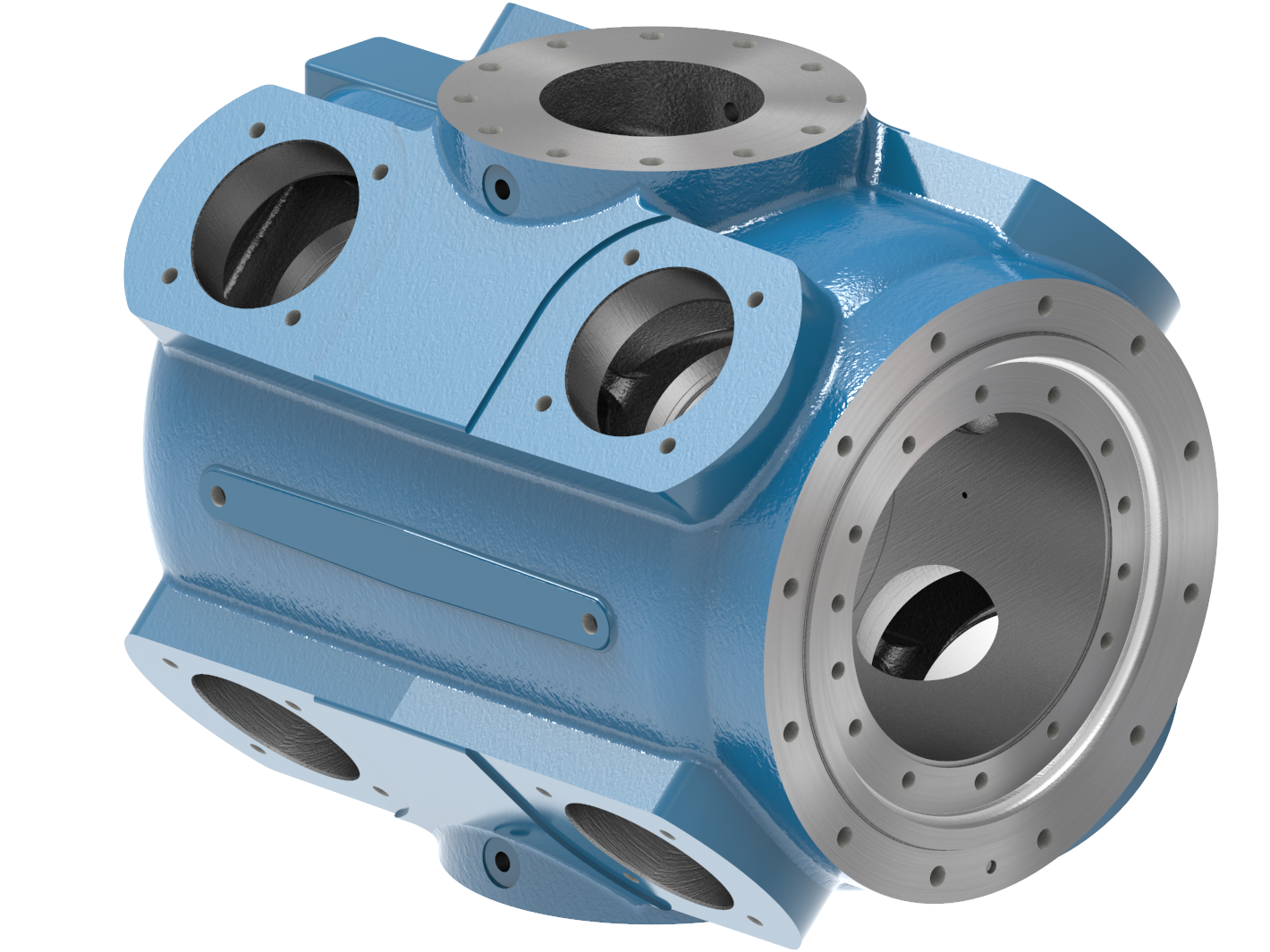

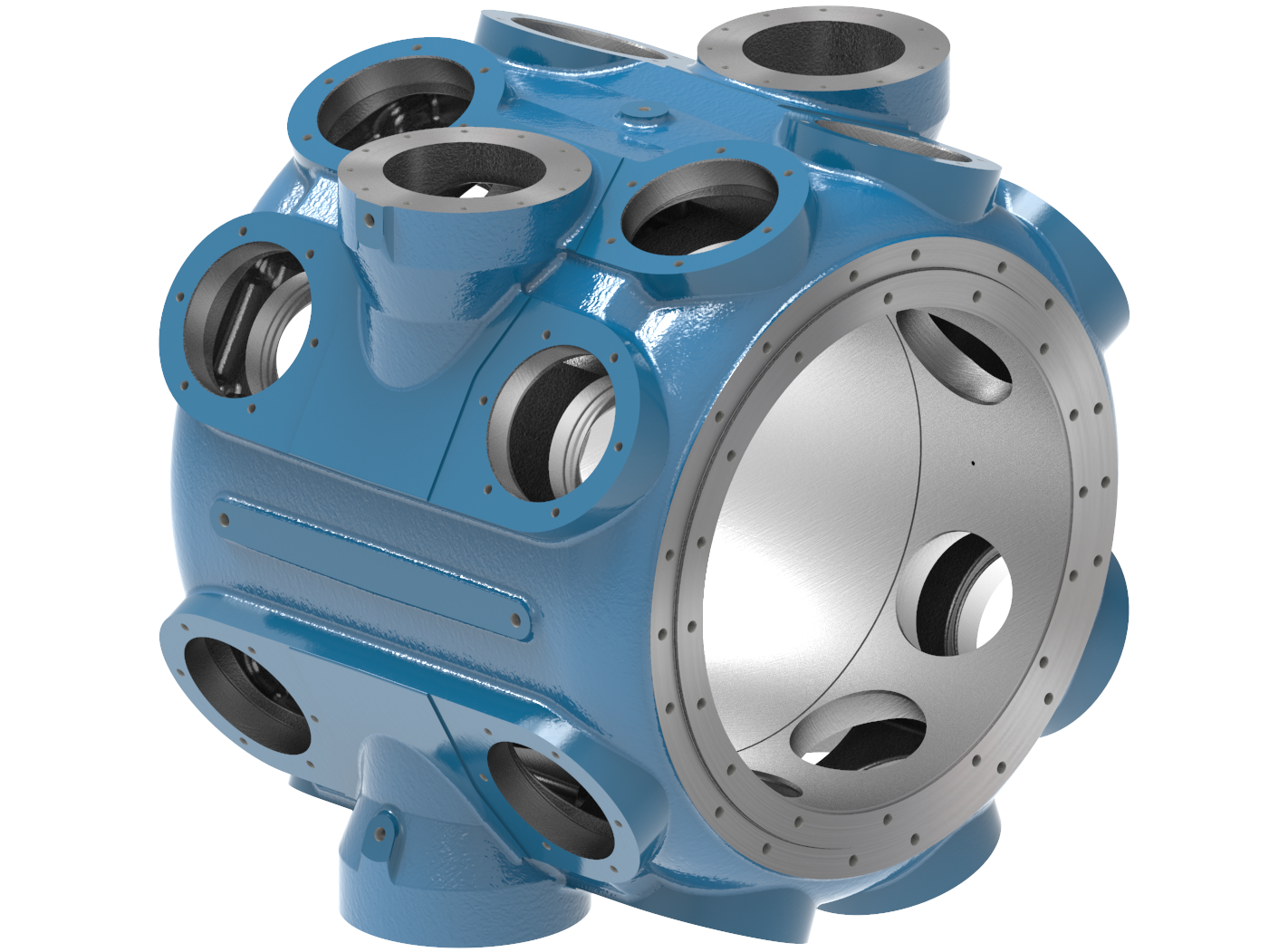

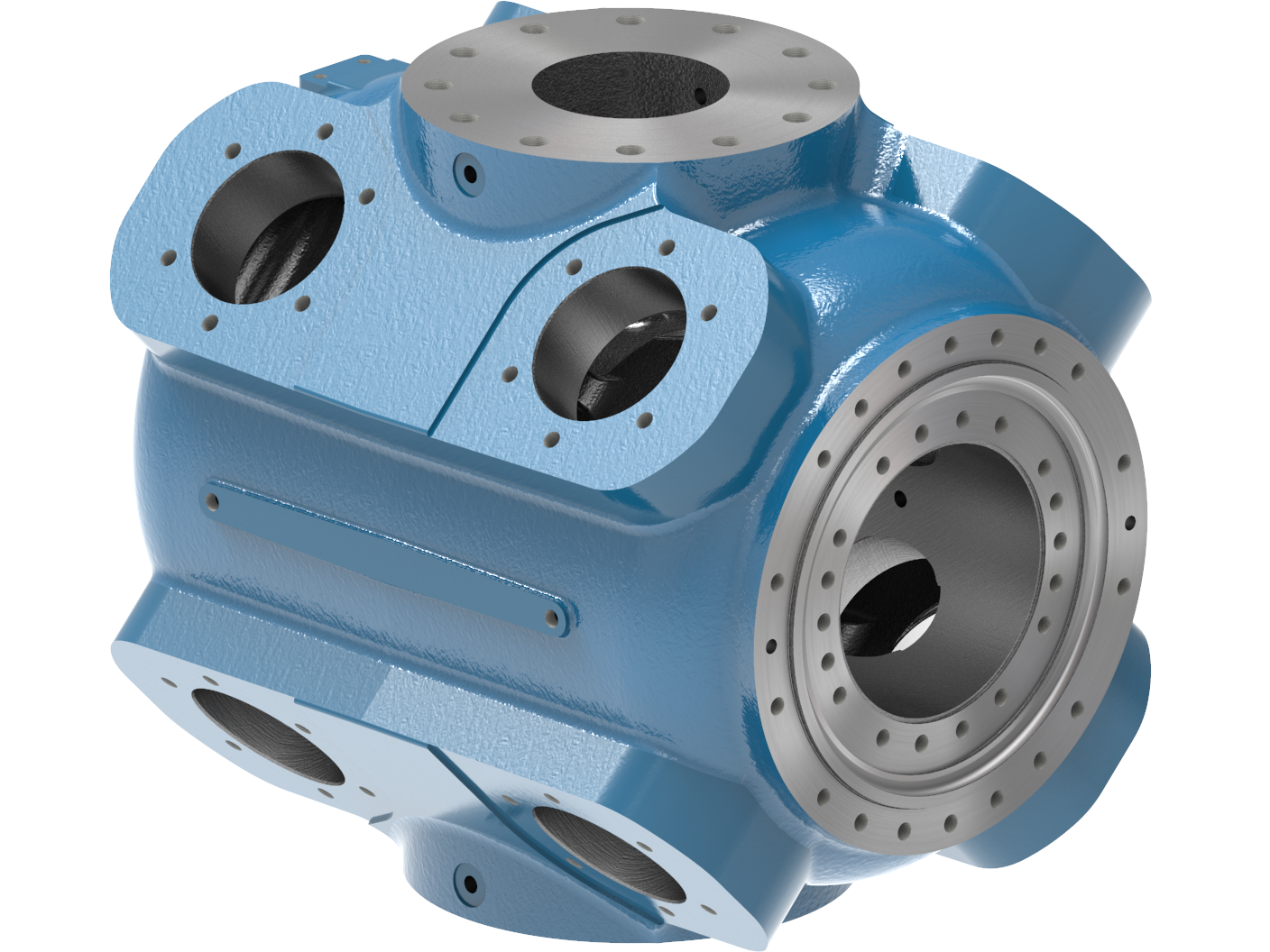

Innovative Cylinders



Ariel produces versatile cylinders that can be utilized over wide pressure ranges without compromise by using valves that effectively balance reliability and performance. For each compressor frame size, Ariel's lineup of cylinders can fully utilize that frame's horsepower and rod load capabilities. Cylinders can be combined in hundreds of different configurations to deliver the precise volume and pressure of gas required.

Ariel 7 Performance Software is used by Ariel engineers and industry experts to model and design compressor configurations for their specific application. All of our cylinder designs, past and present, can be accessed to duplicate your existing compressor operations or design a new build.
