The Ariel JGR
Small Line
JGR

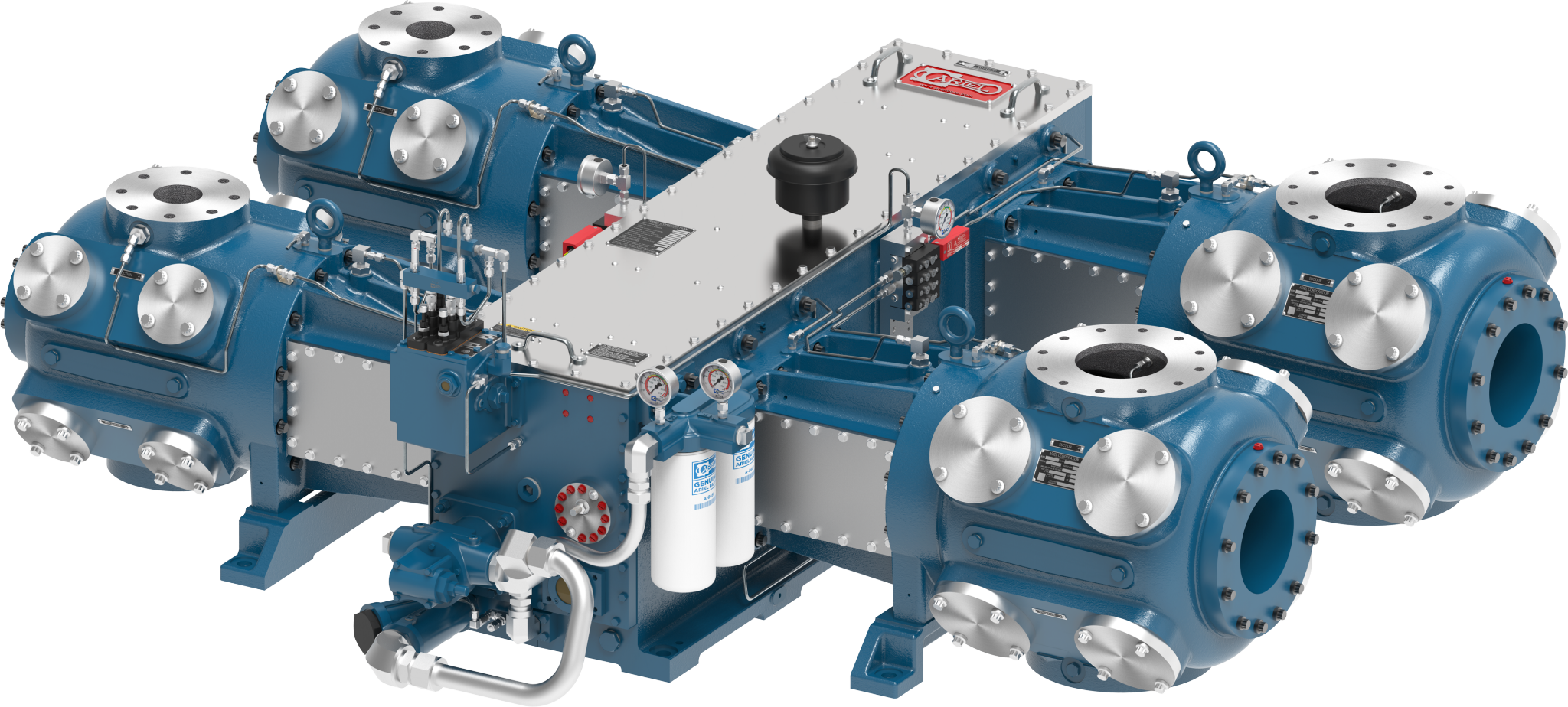

The JGR is a medium-sized separable reciprocating compressor. Nicely suited for gas gathering on moderate-size wells, the JGR is a very packager-friendly compressor, pairing efficiently with electric motors and natural gas engines.
The JGR is offered in configurations up to 860 BHP and has been an oilfield staple for conventional gathering wells and as mother compressors for distributed gathering.
- 2 Throw
- 4 Throw
| JGR | |
|---|---|
Rated Power |
430 |
Stroke (in) |
4.25 |
Max RPM |
1,200 |
Piston Speed |
850 |
Rod Diameter (in) |
1.5 |
Total Rod Load (lbs) |
32,000 |
Tension (lbs) |
16,000 |
Compression (lbs) |
20,000 |
Average Weight (lbs) |
4,800 |
Max Length (in) |
41 |
Nominal Width (in) |
104 |
Crankshaft Centerline (in) |
12 |
| JGR | |
|---|---|
Rated Power |
860 |
Stroke (in) |
4.25 |
Max RPM |
1,200 |
Piston Speed |
850 |
Rod Diameter (in) |
1.5 |
Total Rod Load (lbs) |
32,000 |
Tension (lbs) |
16,000 |
Compression (lbs) |
20,000 |
Average Weight (lbs) |
9,600 |
Max Length (in) |
78 |
Nominal Width (in) |
104 |
Crankshaft Centerline (in) |
12 |
Product Features
Full Pressure Lubrication

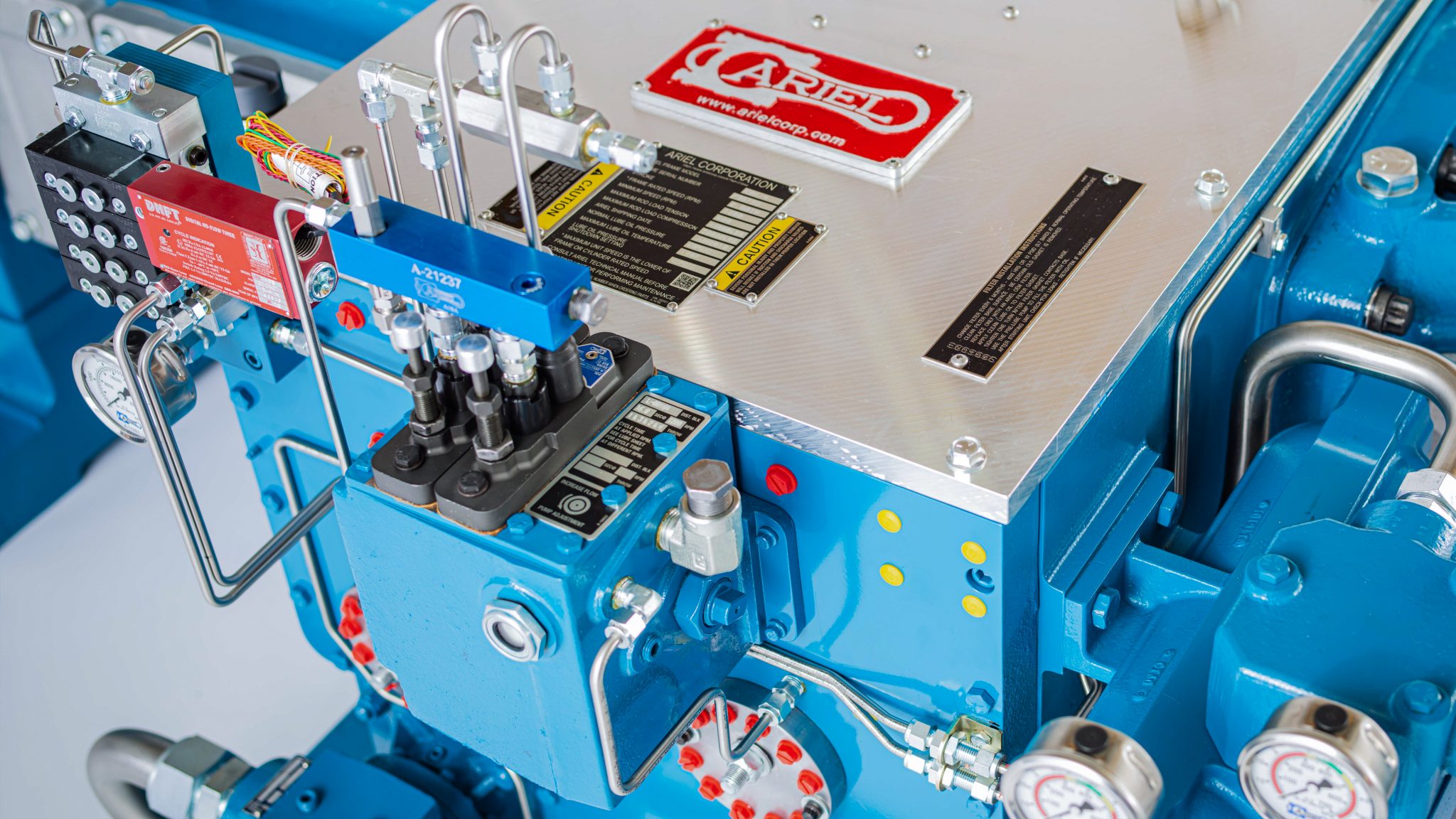

A frame-driven lube oil pump provides cooled oil through a full-flow oil filter to all the frame's moving components. A divider-block system also supplies metered oil to cylinder bores and rod packings.
Heavy-Duty Crankshafts

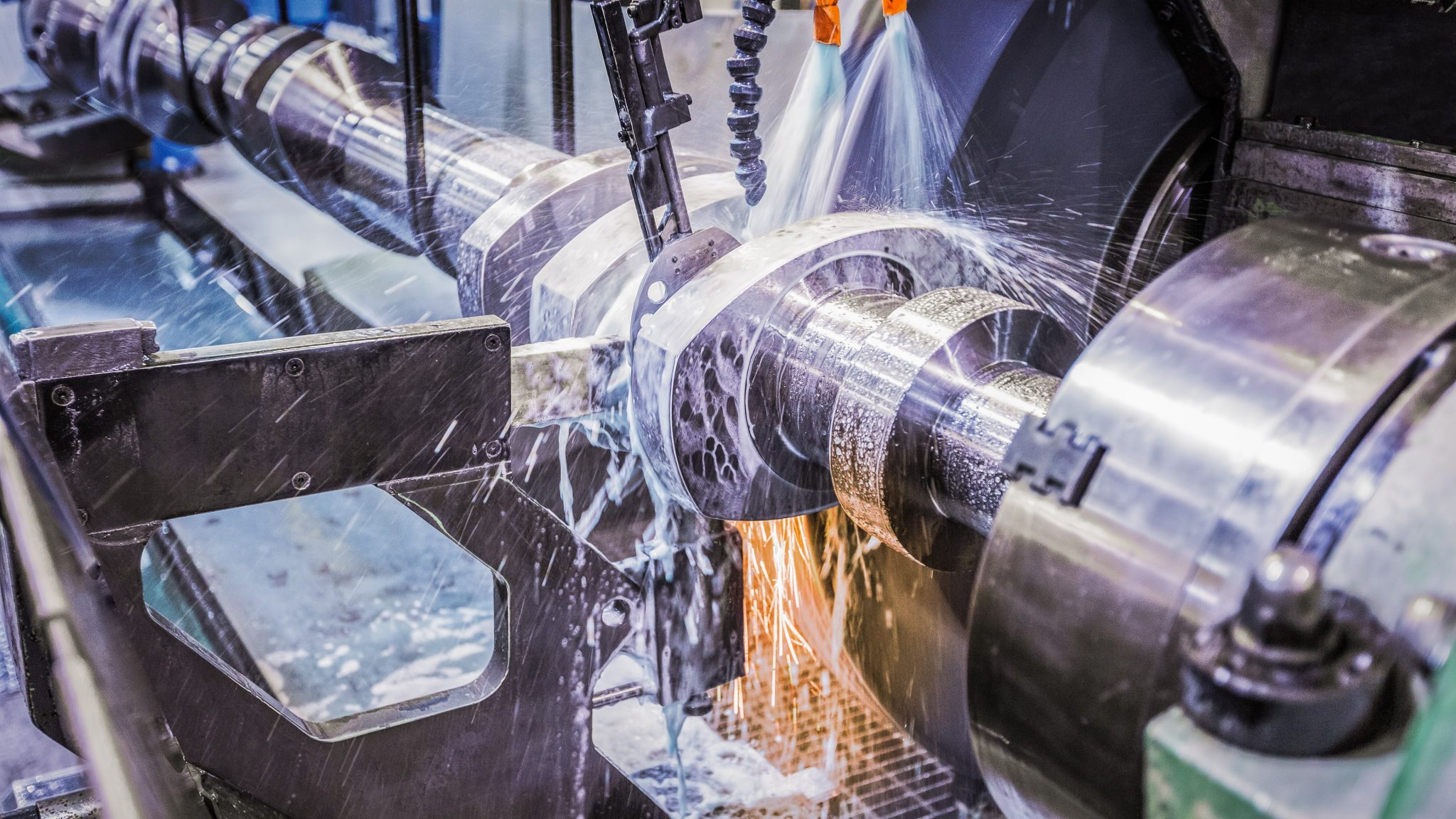

The Ariel JGR compressors feature forged steel, precision-machined crankshafts with integral counter-weights manufactured specifically by Ariel Corporation.

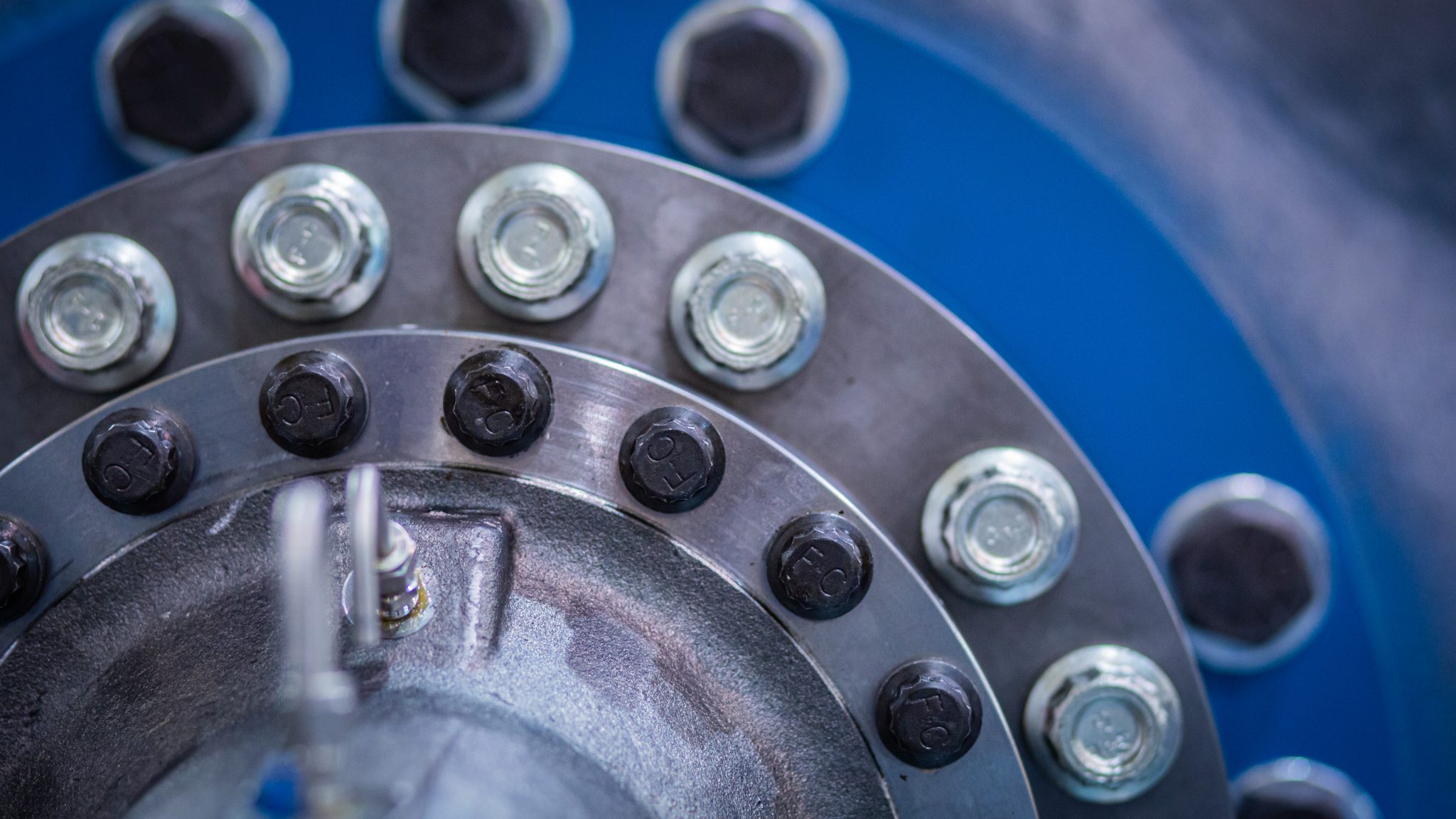

High-Strength Bolting
Durable grade 8 bolting on all loaded joints, combined with specially designed fatigue-fighting bolts on all valve caps, ensure ultimate fastening strength throughout.
Materials

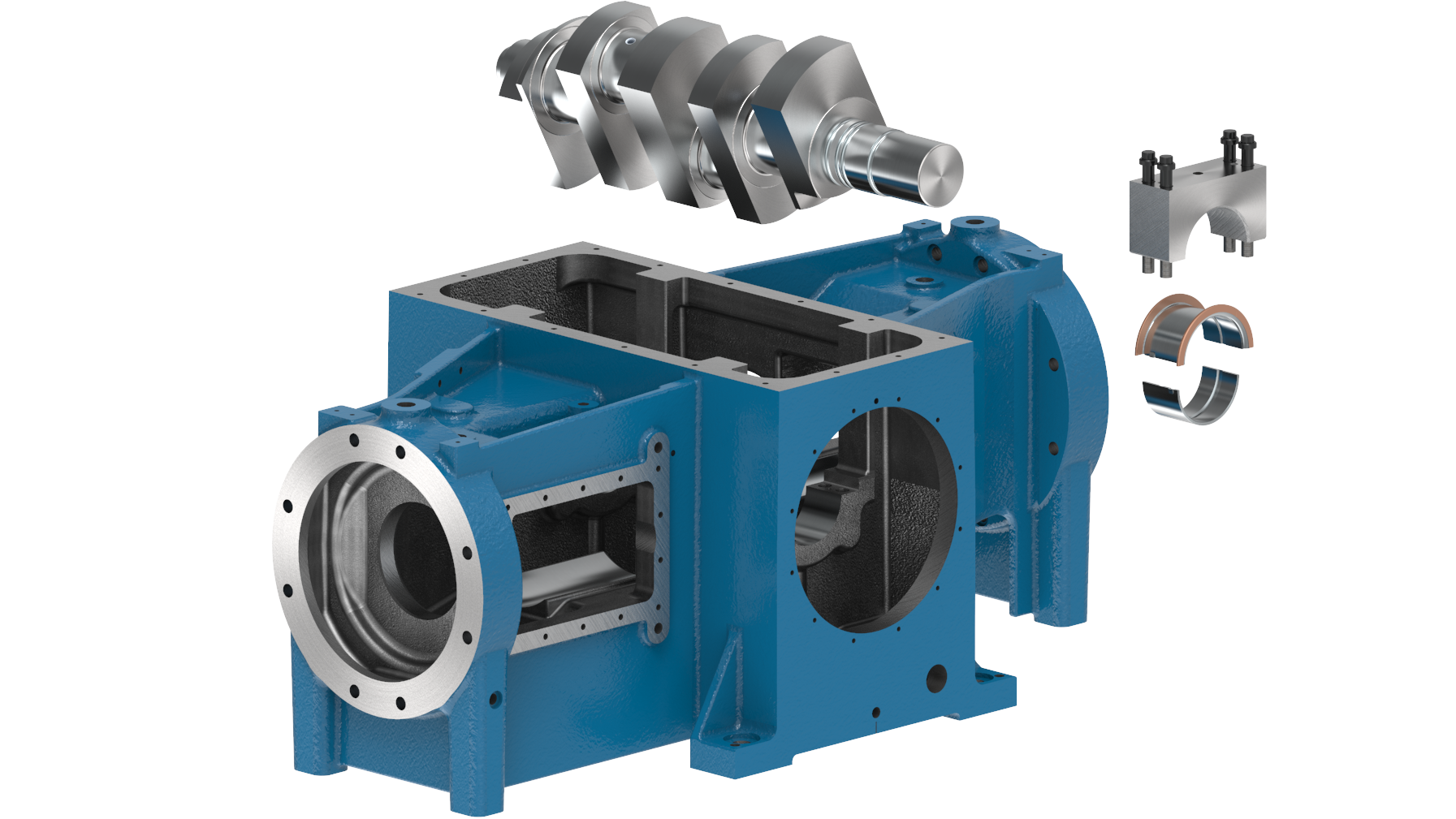

- Gray Iron Crankcase: Forged steel crankshaft, gray iron crosshead guide, tri-metal main bearing

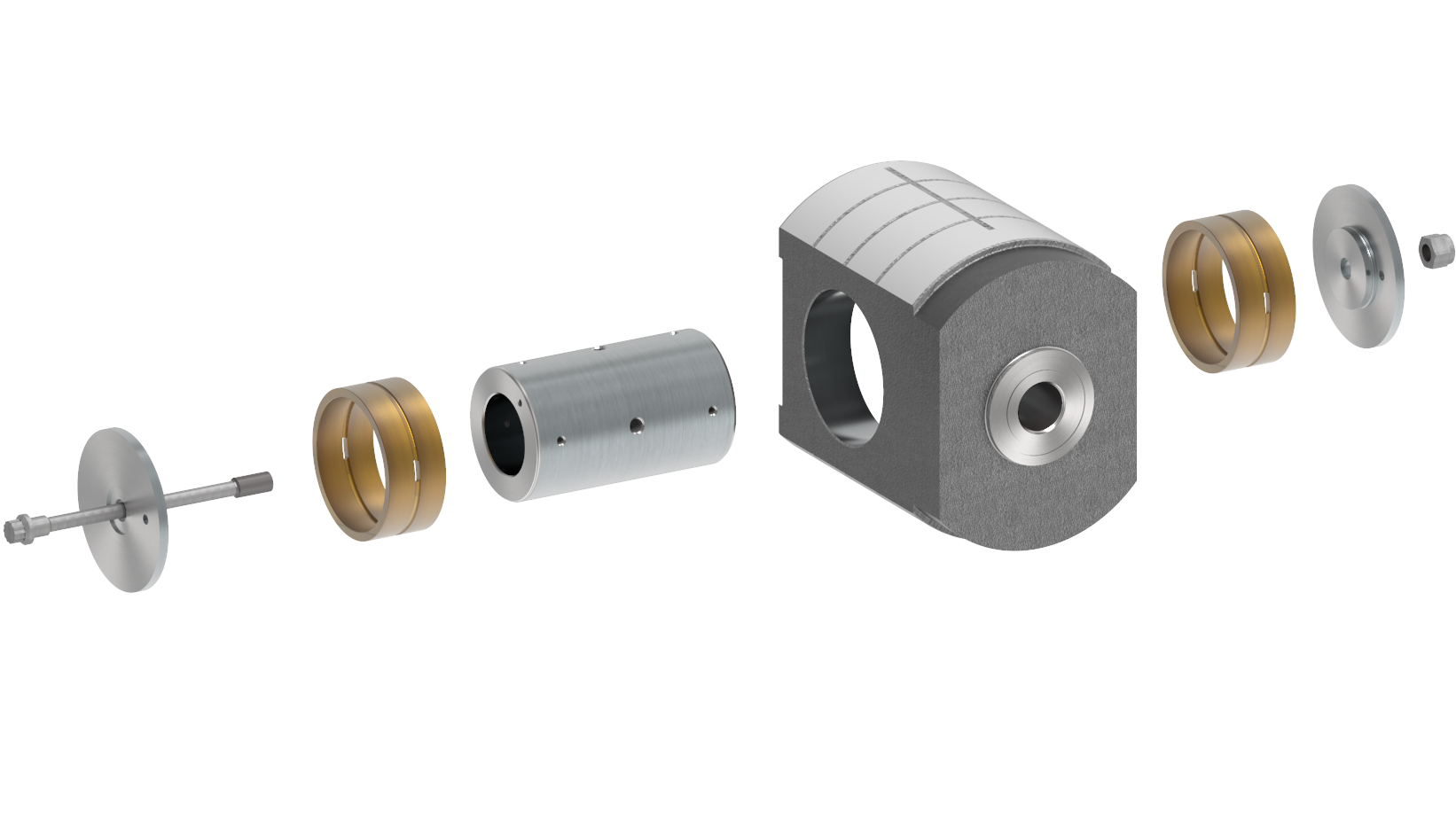

- Ductile Iron Crosshead: Alloy steel crosshead pin

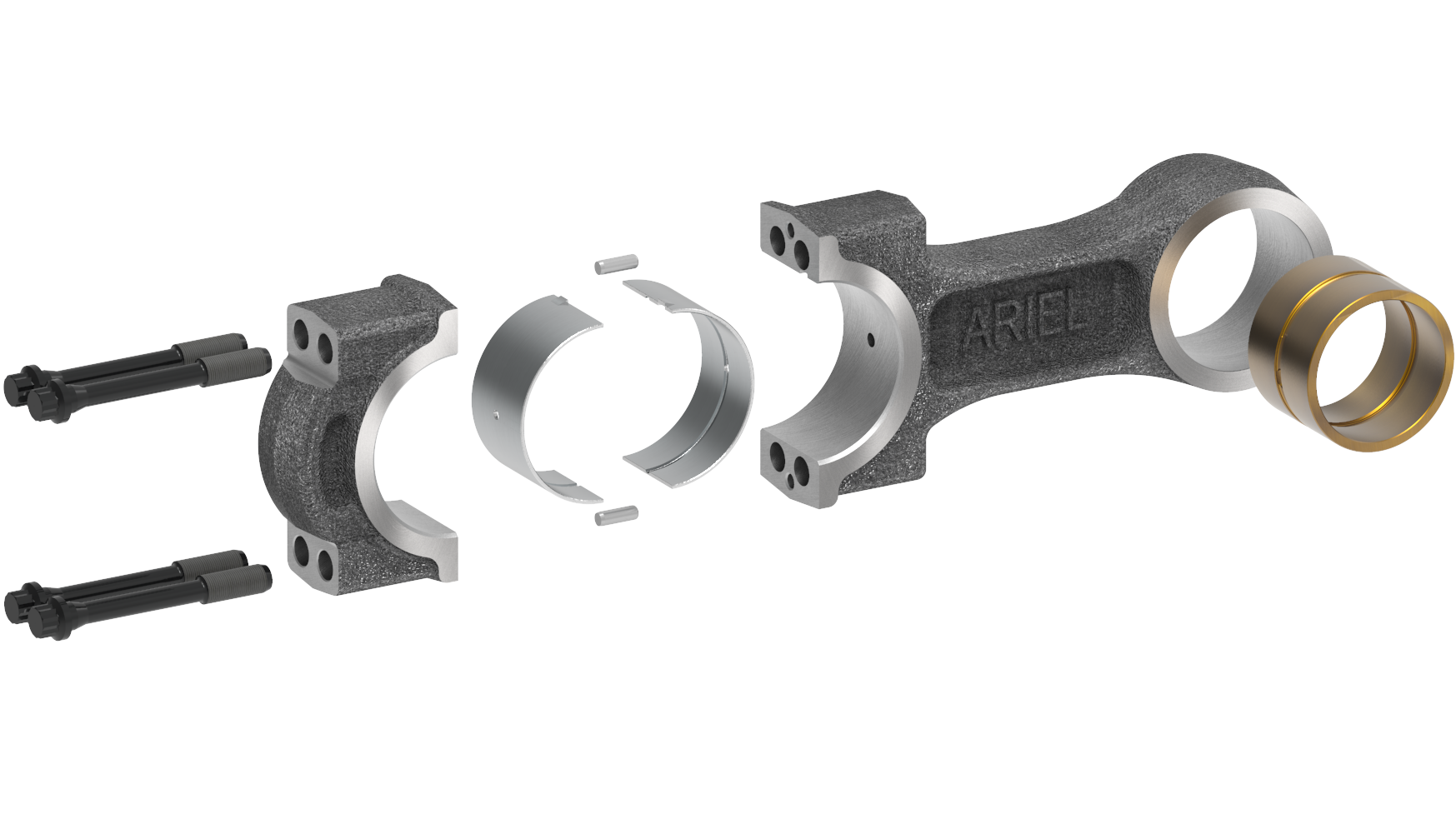

- Forged Steel Connecting Rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 stress bolts
- 1
- 2
- 3
- 1
- 2
- 3
- 4

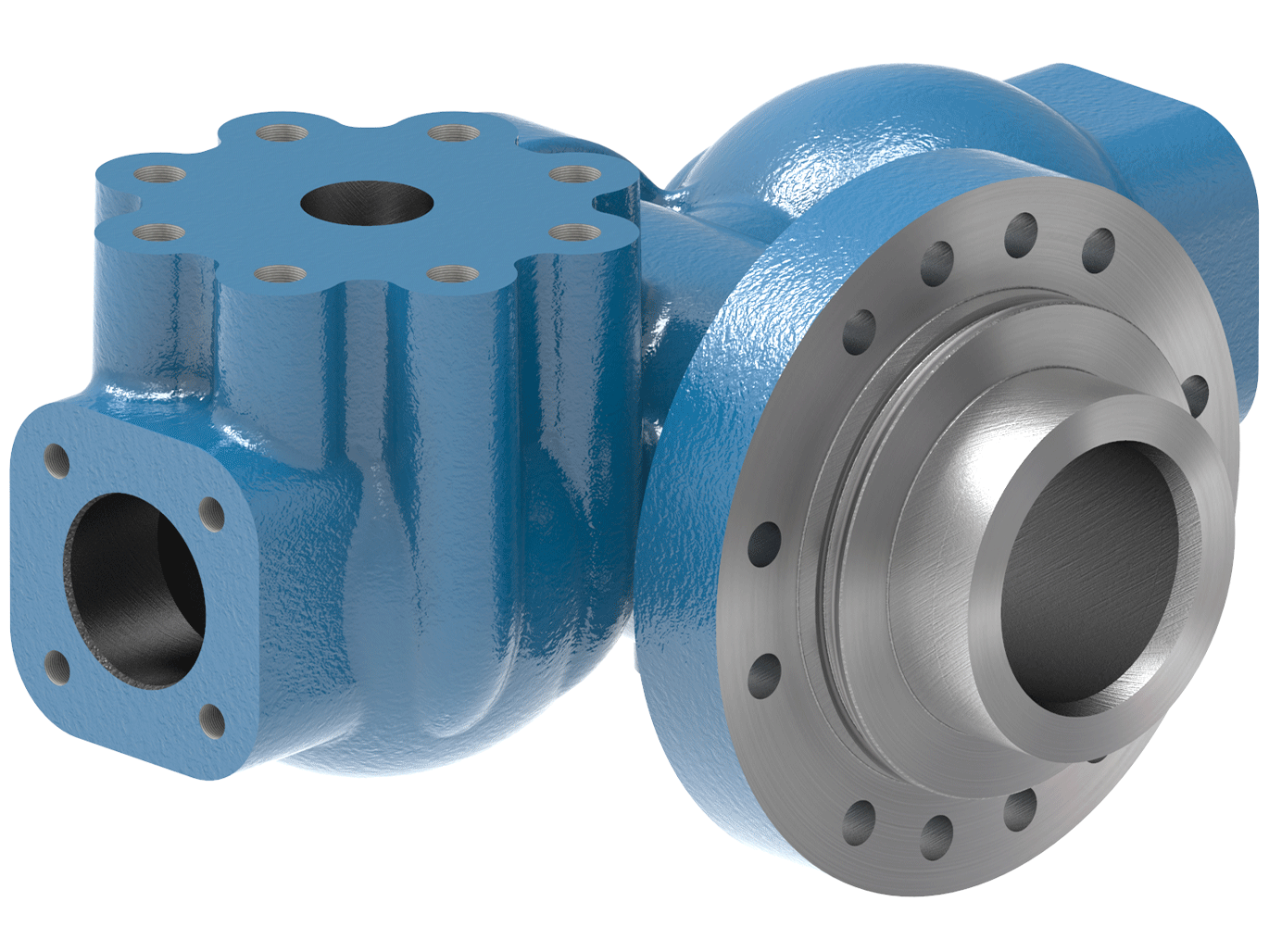

Innovative Cylinders

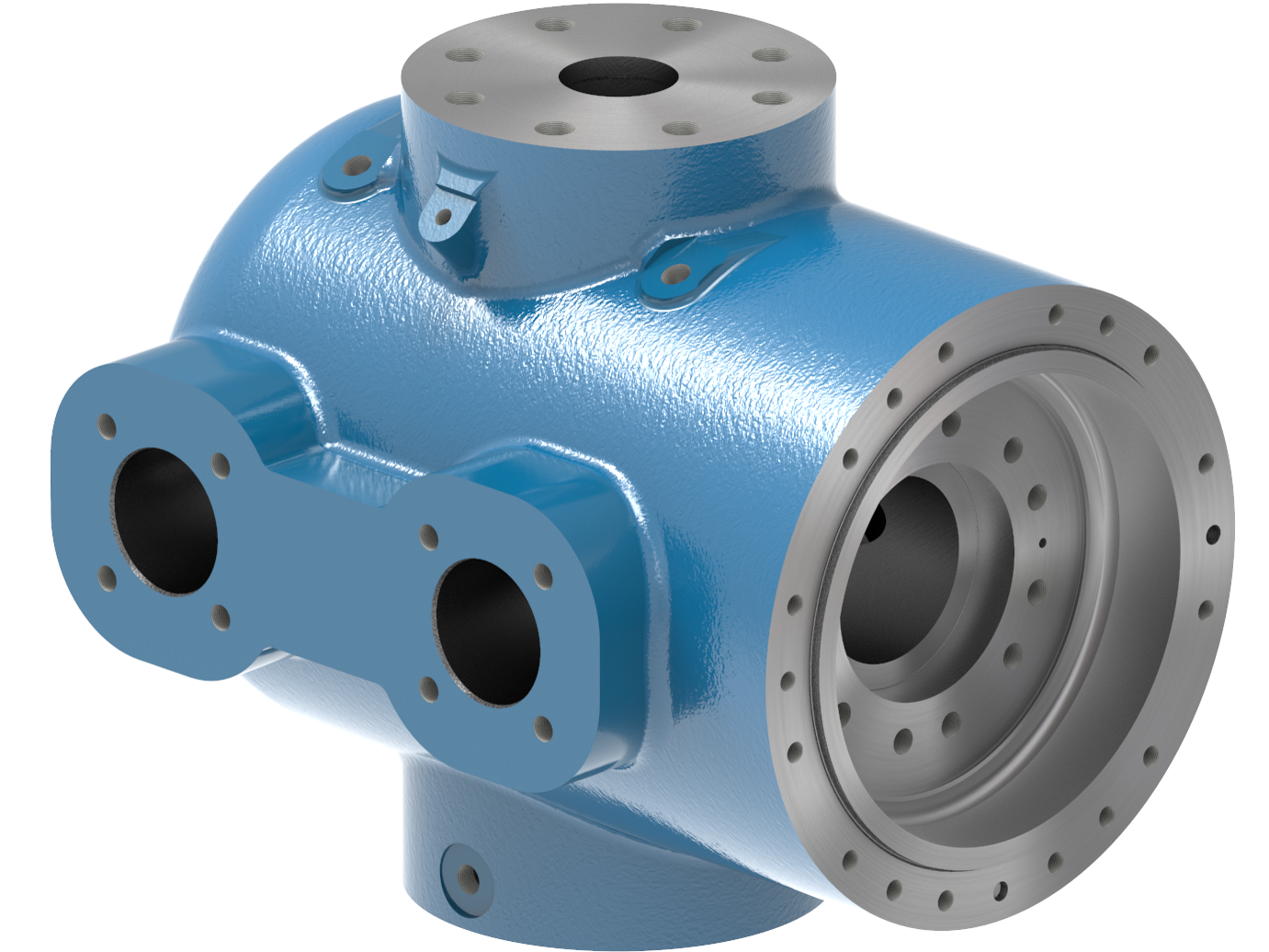

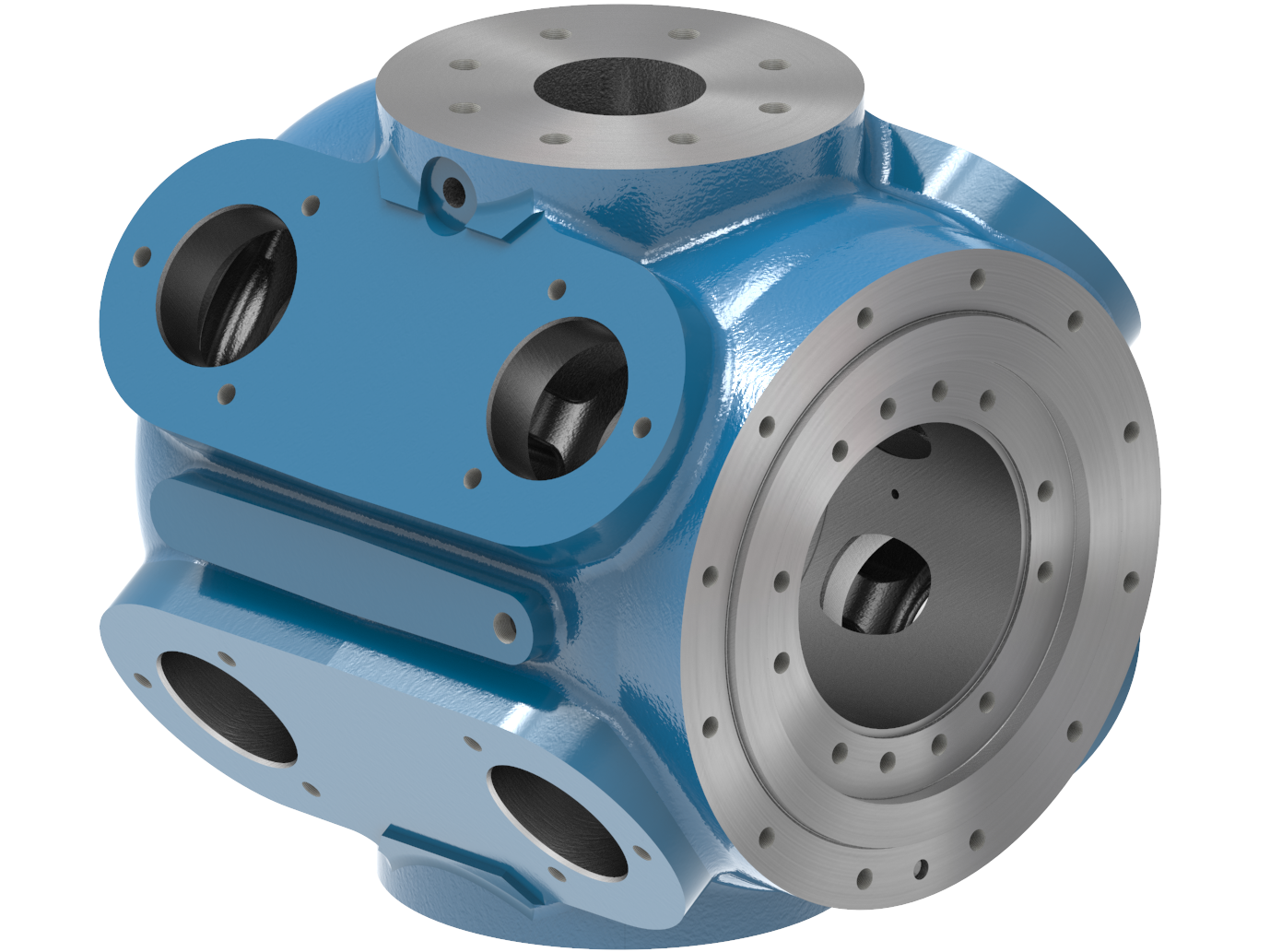

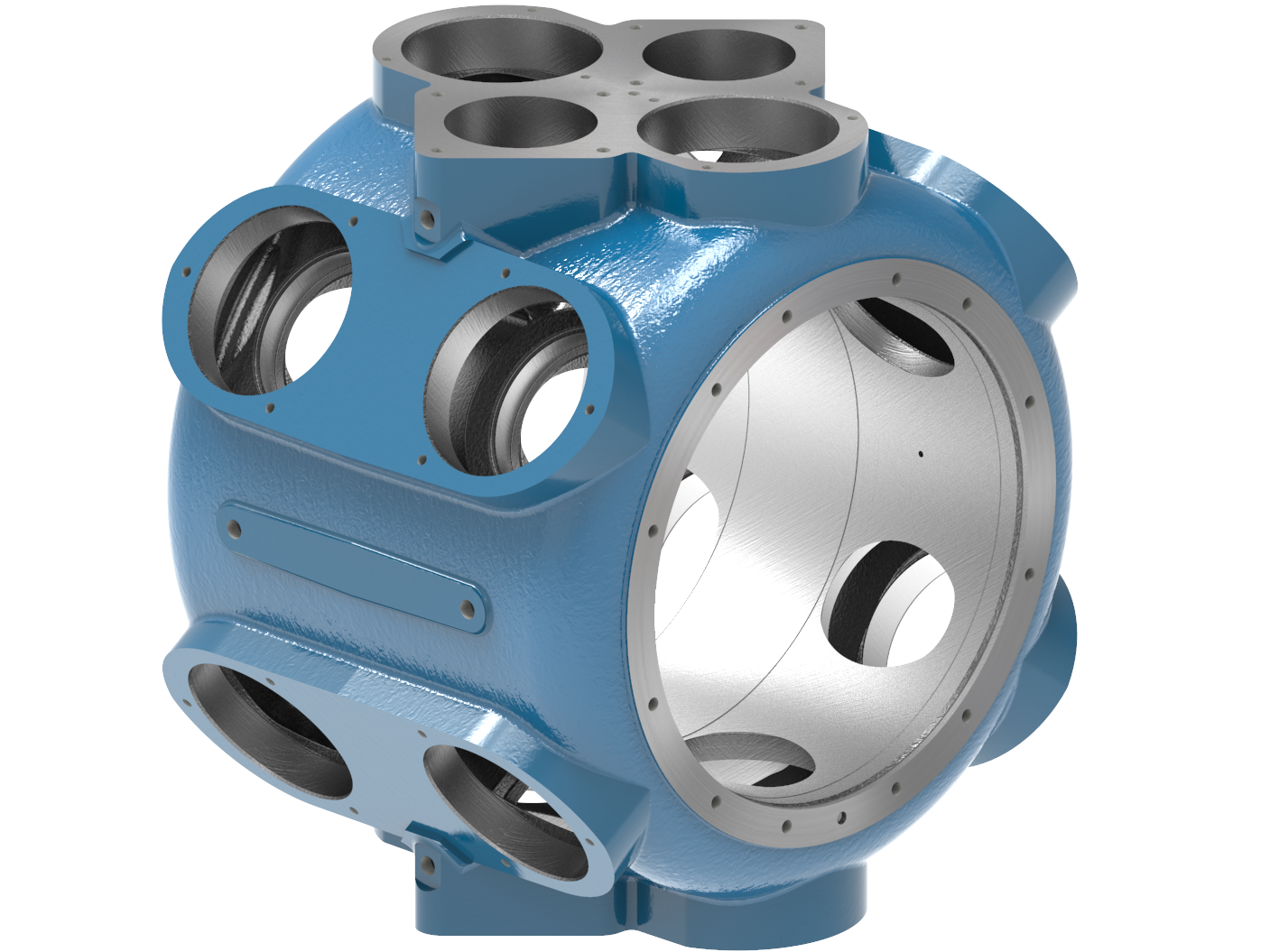

Ariel produces versatile cylinders that can be utilized over wide pressure ranges without compromise by using valves that effectively balance reliability and performance. For each compressor frame size, Ariel's lineup of cylinders can fully utilize that frame's horsepower and rod load capabilities. Cylinders can be combined in hundreds of different configurations to deliver the precise volume and pressure of gas required.
Ariel 7 Performance Software is used by Ariel engineers and industry experts to model and design compressor configurations for their specific application. All of our cylinder designs, past and present, can be accessed to duplicate your existing compressor operations or design a new build.
