Sole Plates and Shims

Ariel Large Frame Flatness Made Easy

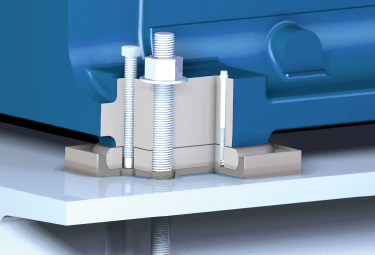

Ariel is now offering precision sole plates and shim kits for the KBZ/U and KBB/V compressor frames. These shims and plates are designed to fit each specific frame or guide foot and to provide the maximum amount of contact area with the foot. Sole plates and shims can help ensure mounting points are flat and parallel to the compressor feet; this avoids “soft-foot” and facilitates ER-82 compliance. Frame and guide mounting kits, containing sole plates and shims for each foot, are available options on new units through the Ariel Performance Program.

Contact your authorized Ariel distributor for more Plate information.
